High Pressure Flowmeter ( for Sensitive Measurement)

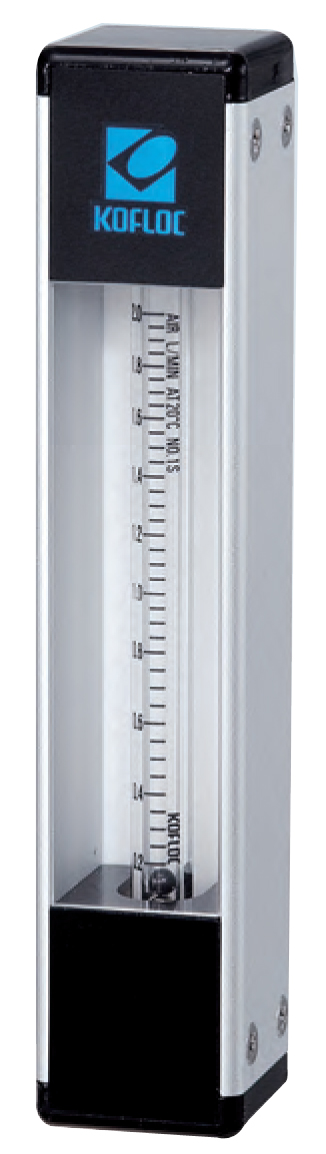

Model RK1450 SeriesThis top-grade high-precision area flowmeter is a fruit of KOFLOC's challenge to boost the general perception currently conceived by people of flowmeter of being a "mere yardstick" into a new conception that a flowmeter is a "precision instrument." This flowmeter particulary features its uniquely precision-formed glass tube and ultraprecision ball float
Features
- Capable of measuring ultra-minute flows
Can measure a wide range of flows from ultra-minute flows of 0.5-3 ML/MIN to flows of 3-30 L/MIN - High precision measurement
High precision measurement of flows is available up to ±2% of full scale (standard specification) or to ±1% of full scale (optional specification) - Wide variations
A broad range of variation is available in total length, materials of construction, flow rate, pressure, scale, and so forth to meet diverse applications froma a variety of fields - Capable of measuring all kinds of gases
Practically all kinds of gases can be measured, not to mention those standard (Air, N2, O2, H2, He. Ar and CO2). - Measurement of water flows also possible
Measurement of full-scale water flows not exceeding 1 L/MIN is also possible. (Dimensions may vary depending upon the specified maximum flow rate.)
Applications
- For integration into your equipment panel
- For flow inspections at laboratory
- For semiconductor manufacturing equipment
- For biotechnology industries
RK1400

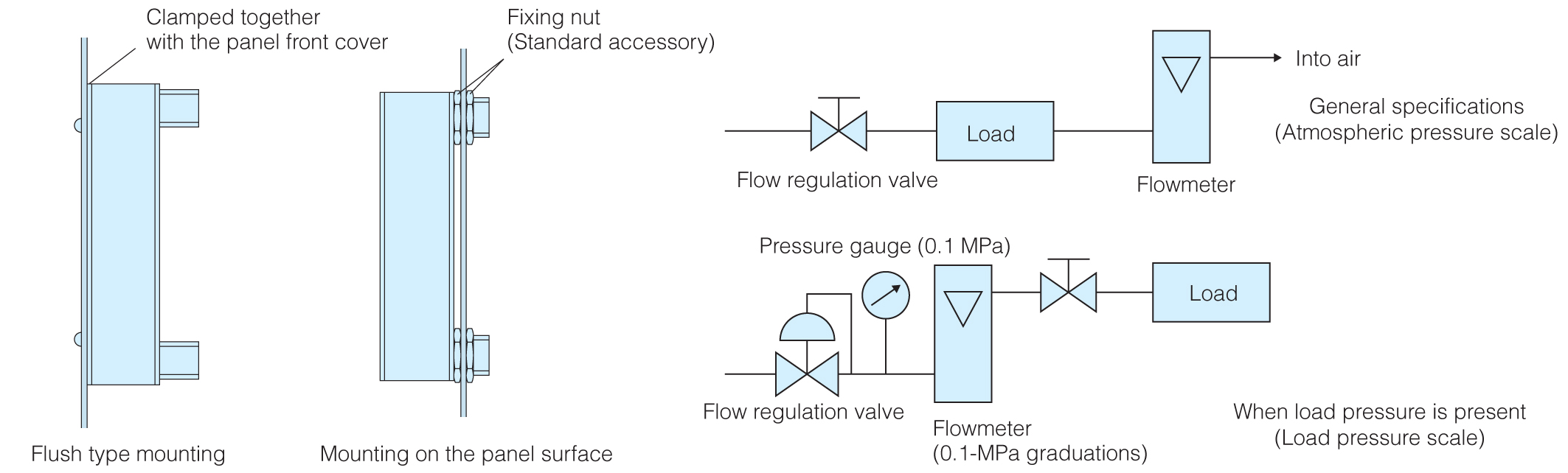

Example of use with Model RK1450
