Acrylic Resin Flow Meter

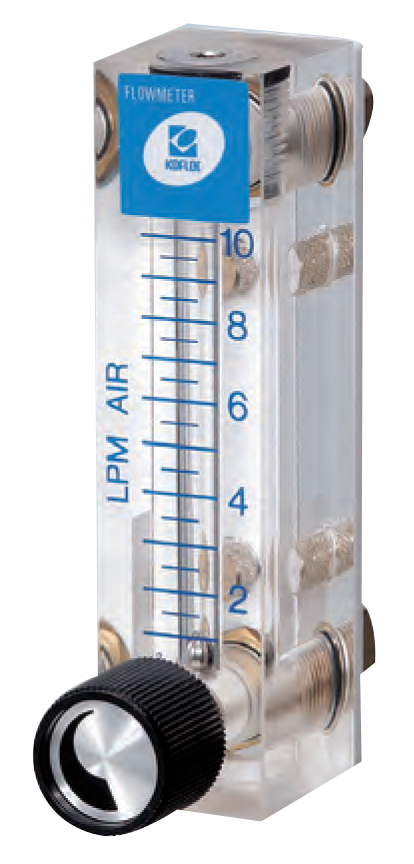

Model RK200 SeriesThis is a compact lighweight acrylic flow meter. Models with or without a valve are available. The integrated transparent acrylic panel structure permits easy reading of the flow. This model is ideal for air sampling equipment, medical equipment, and analyzers.
Features
- Compact design
The total length is approx. 100mm, and air can be measured and controlled at the rate of 100 L/MIN - Low price
The simple structure keeps the price low - Quick Delivery
Standard Specifications
| Fuilds | Air | |
| Flow Range | 0.04 -0.5 L/MIN 0.1 - 1 L/MIN 0.4 - 5L/MIN 1 - 10 L/MIN 2.5 - 25 L/MIN 5-50 L/MIN 10 - 100 L/MIN |
|
| Accuracy | FS ±6% | |
| Connection | Rc 1/4 | |
| Material | Body | Acrylic Resin |
| Joint | Brass | |
| Sealing Material | NBR | |
| Proof Pressure | 0.7MPa | |
| Temperature Resistance | 65°C (MAX) | |
RK200V

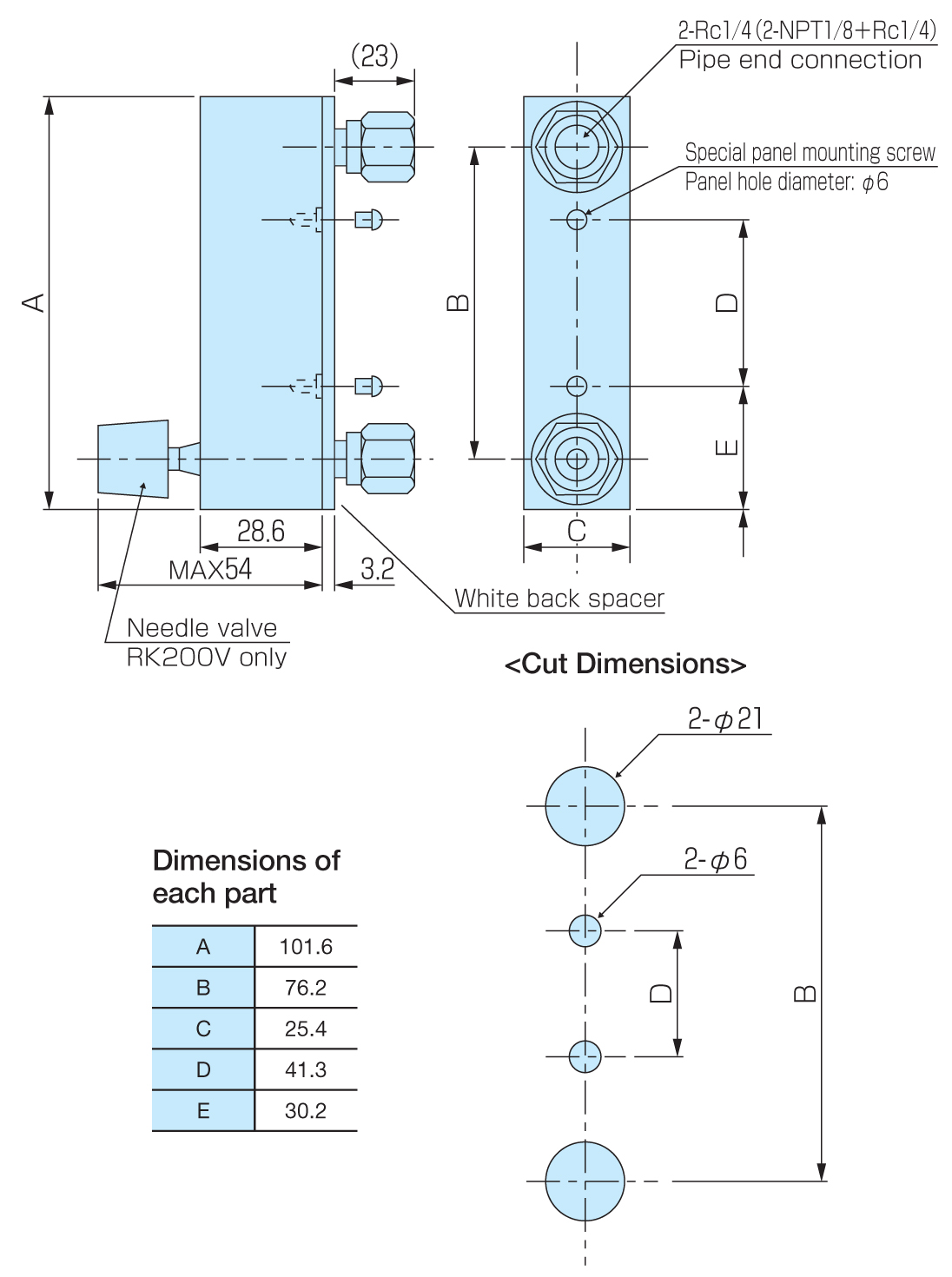

Dimension

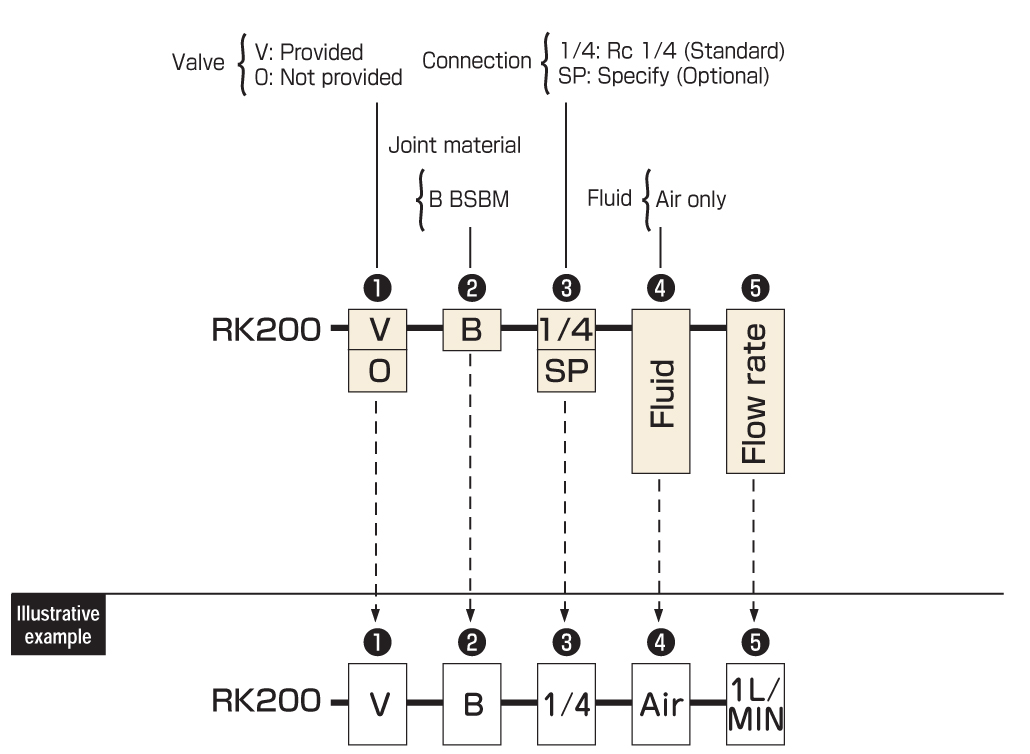

ORDERING
* Refer to "Ordering" and "Illustative example" when placing an order or requesting a quotation. Fill in the blanks in the "Order/Quotation Request Card" at the end of he catalog, and send the card by fax.
