Flow Meter for Gas Mxing
Model RK120XM SeriesThe flow meter for gas mixing uses a KOFLOC multiple flow meter to mix multicomponent fluids. Connection of pipes to respective gas inlets and the mixed gas outlet permit gases to be mixed. This flow meter is ideal for easy gas mixing in laboratories and studies.

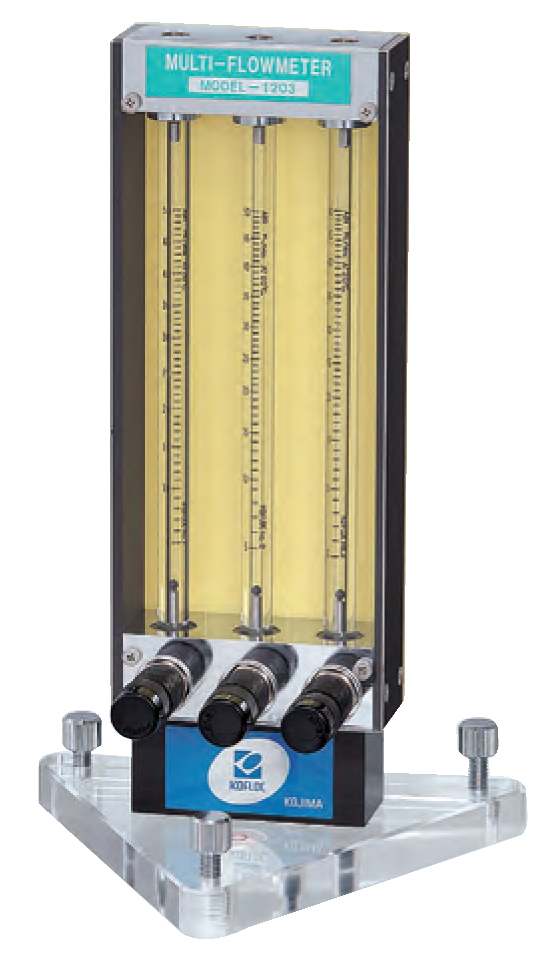

RK1203M
Features
- The simple structure facilitates maintenance
- The precision needle valve allows easy, fine control of flow
- All the parts are super-cleaned to ensure excellent cleanliness
- The flow meter is mage into two - to - four - compenonet typers to handle various gases in various flow ranges
Standard Specifications
| Fuilds | Air, N2, O2, H2, He, Ar, CO2 (Calibration with actual gas) For other gases, please consult us regarding conversion conditions or calibration with the actual gas to be used. |
|
| Flow Range | From 5-50 ML/MIN to 1-10 L/MIN 10L/MIN or less per line and 20L/MIN or less in total (Refer to the Capacity Table on page 55.) |
|
| Accuracy | FS ±2% (Measurement point) *Optional: FS ±1% (Measurement point) |
|
| Proof pressure | 0.5MPa | |
| Available scale | 10:1 *Optional 20:1 | |
| Material | SS | BS |
| Body block | SUS316 Brass | |
| Tapered tube | Pyrex®, glass | |
| Packing | FKM - Option (1) | NBR |
| Float | Pyrex, SUS316, glass | |
| Protective cover | Acrylic resin | |
| Temperature resistance | MAX60°C | |
| Connection | Rc 1/4 (Standard), RC 1/8 (Optional) | |

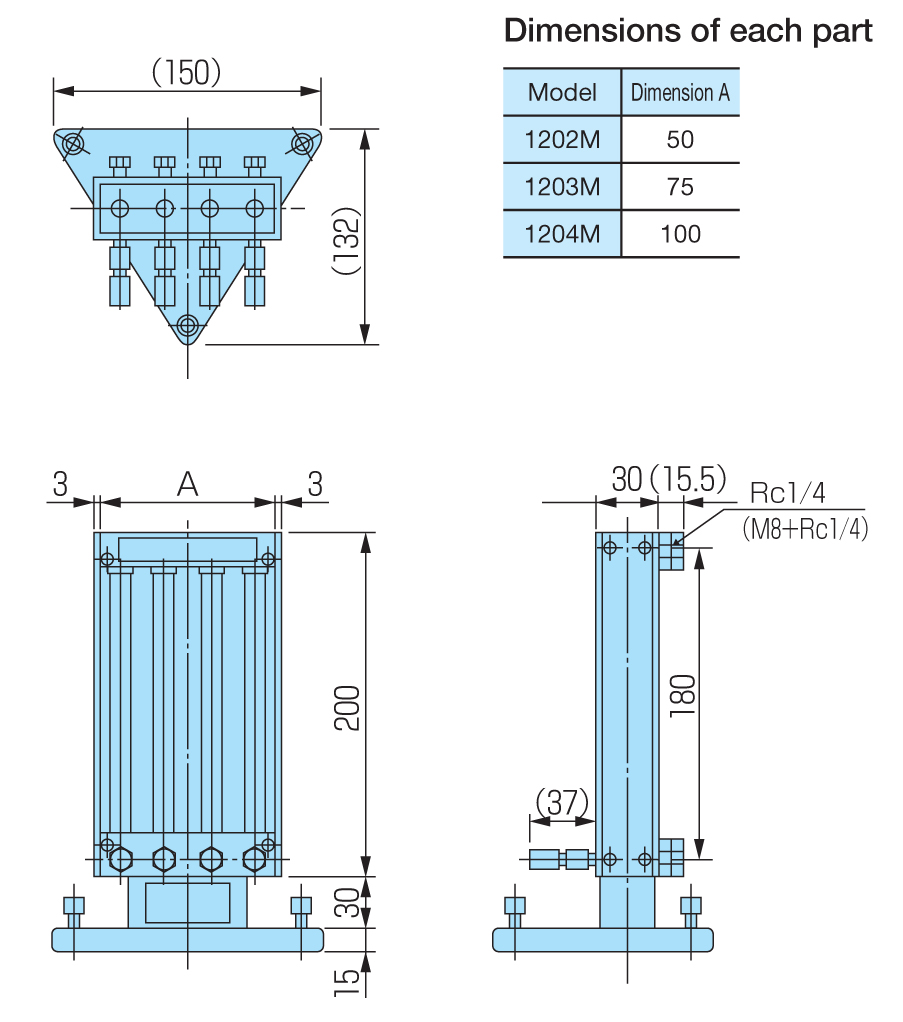

Dimension

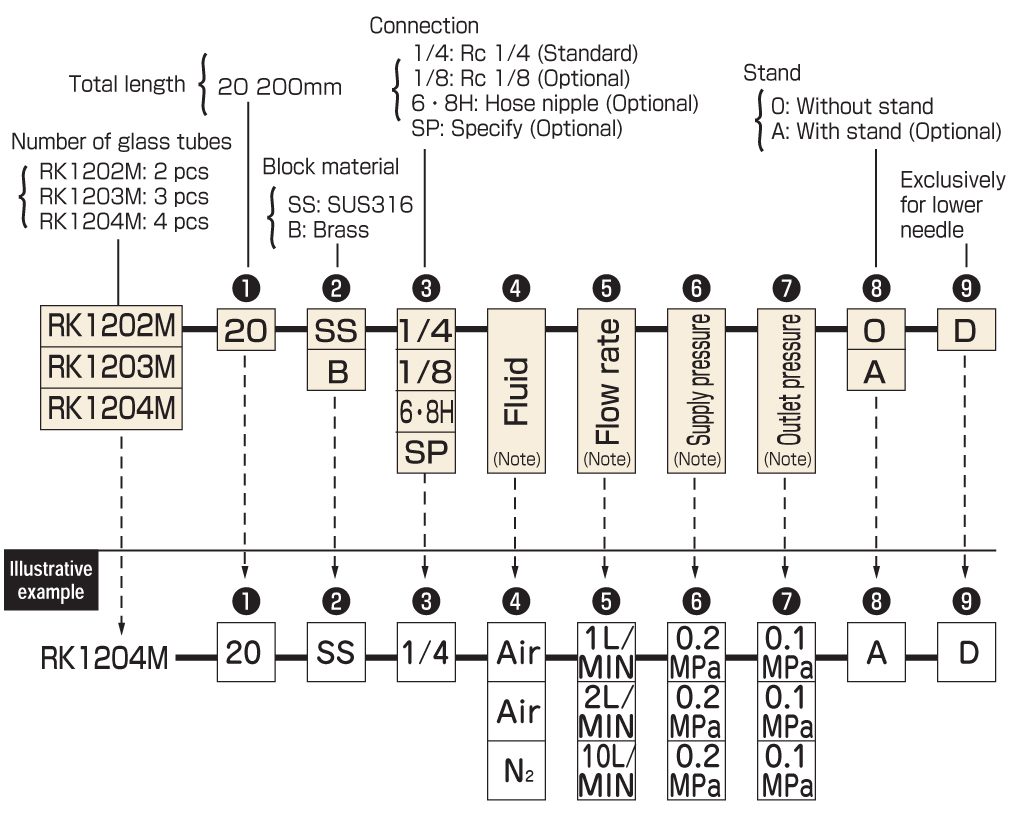

ORDERING
Note: Specify the flow rates in increasing order form the left, as many as the number of glass tubes for (4), (5), (6), and (7).* Refer to "Ordering" and "Illustative example" when placing an order or requesting a quotation. Fill in the blanks in the "Order/Quotation Request Card" at the end of he catalog, and send the card by fax.
