Flowmeter with Precision Needle Valve (for Accurate Flow Control)

Model RK1200 Series

Standard Specifications

  Gases Liquids
Fuilds   Air, N2, O2, H2, He, Ar, CO2 (Calibration by actual gas)
For other gases, consultation is necessary regarding whether conversion conditions or calibration by actual gas to be used.
*Optional: Scale indicating two types of fluids
Standard fluid: Water
For other liquids, consultation is necessary regarding whether conversion conditions or calibration by actual liquid is to be used
Flow Range  From 0.5-5ML/MIN to 10 -100 L/MIN (See the capacity Table below)
*Option: 0.5 - 3 ML/MIN
0.5-5 ML/MIN to 0.2-2 L/MIN (See the Capacity Table Below)
* Optional: 0.5-3 ML/MIN
Accuracy  FS ±2% (Measurement point)
*Optional: FS ±1% (Measurement point)
FS±2% (Measurement point)
Proof Pressure 1.0 MPa for 100 ML/MIN or less
0.7MPa for 5 L/MIN or less
0.5MPa for 10 L/MIN or more
1.0MPa for 5 ML/MIN or less
0.7MPa for 150 ML/MIN or less
0.5MPa for 200 ML/MIN or more
Available Scale 10:1 *Optional: 20:1
Materials SS BS
Body Block SUS316 Brass
Tapered Tube Pyrex®, Glass
Packing FKM NBR
Float Pyrex, SUS316, SUS304, glass
Protective Covered Acrylic Resin
Temperature Resistance MAX 60°C
Connection End Rc 1/4 (Standard); Rc 1/8 OPtional

Capacity Table

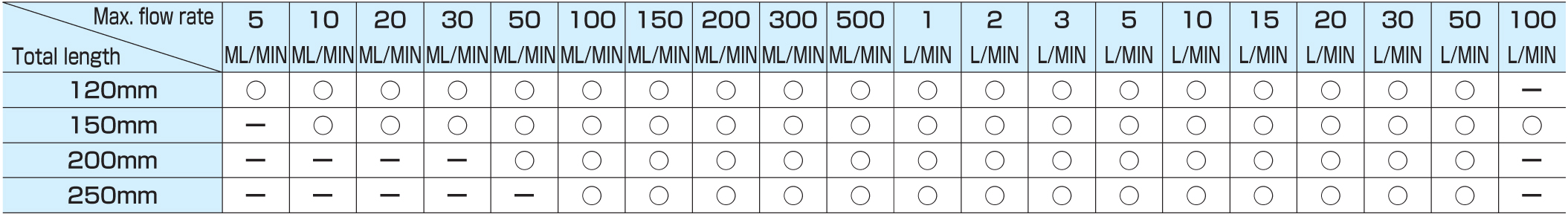

Air (Flow rate at atmospheric pressure)

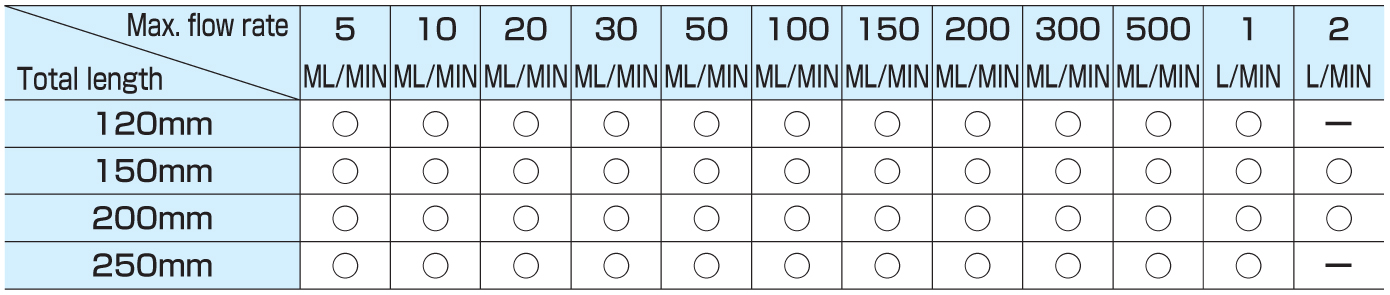

H2O

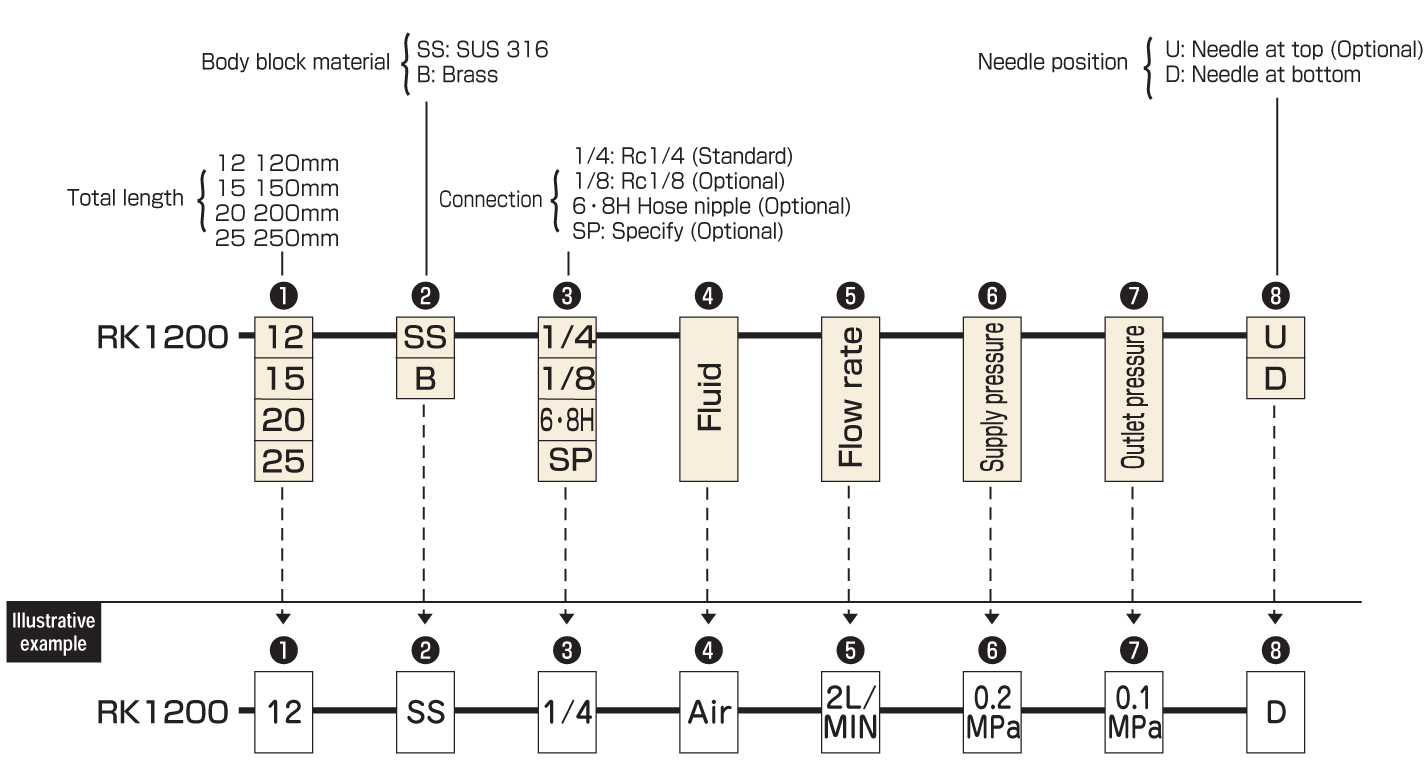

ORDERING

*Refer to "Ordering" and "Illustrative example" when placing and order requesting a quottion. Fill in the blanks in the "Order/ Quotation Request Card" at the end of the Catalog, and send the card by fax.
