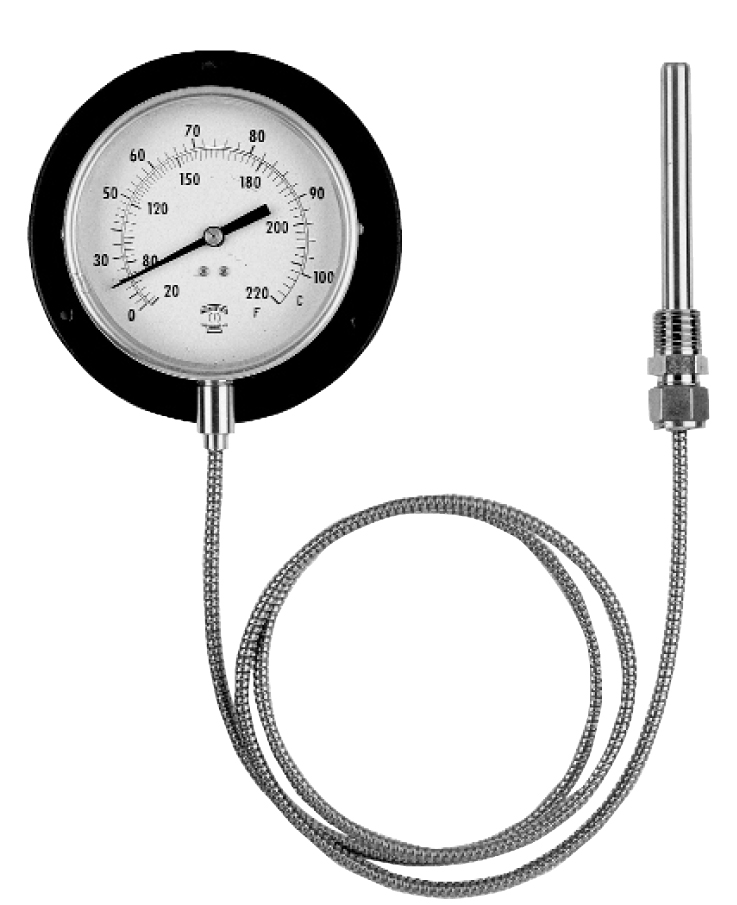

TRR Remote Reading Thermometer
Features
- Versatile, inert gas and vapor remote thermometers
- 2.5" to 8" dials available
- Brass or stainless steel capillary and bulbs
- Direct with capillary
- Range between -40 and 600°C
Specification
| Dial | 2.5"(63(mm), 3.5"(90mm), 4"(100mm), 4.5"(115mm) and 6"(150mm) white aluminum with black figures |
| Case | Black steel, aluminum and stainles steel |
| Accuracy | ±0.5% of full scale for gas fill ±2.0% of full scale for vapor fill |
| Pointer | Aluminum with micrometer adjustment |
| Working Temperature | From 1/10 to 3/4 of full scale |
| Capillary | Double braided copper Stainless steel, plain Stainless steel, armor |
| Lens | Polycarbonate or glass |
| Capillary Lengths | Maximum 25 meters |
| Protection | IP55 |
| Thermal Drift | ±0.6% for every 10°C variation from 20°C |
| Options | Duct Sliding Union Metal Tag Plate Laminated Safety Glass Other ranges are available upon request |

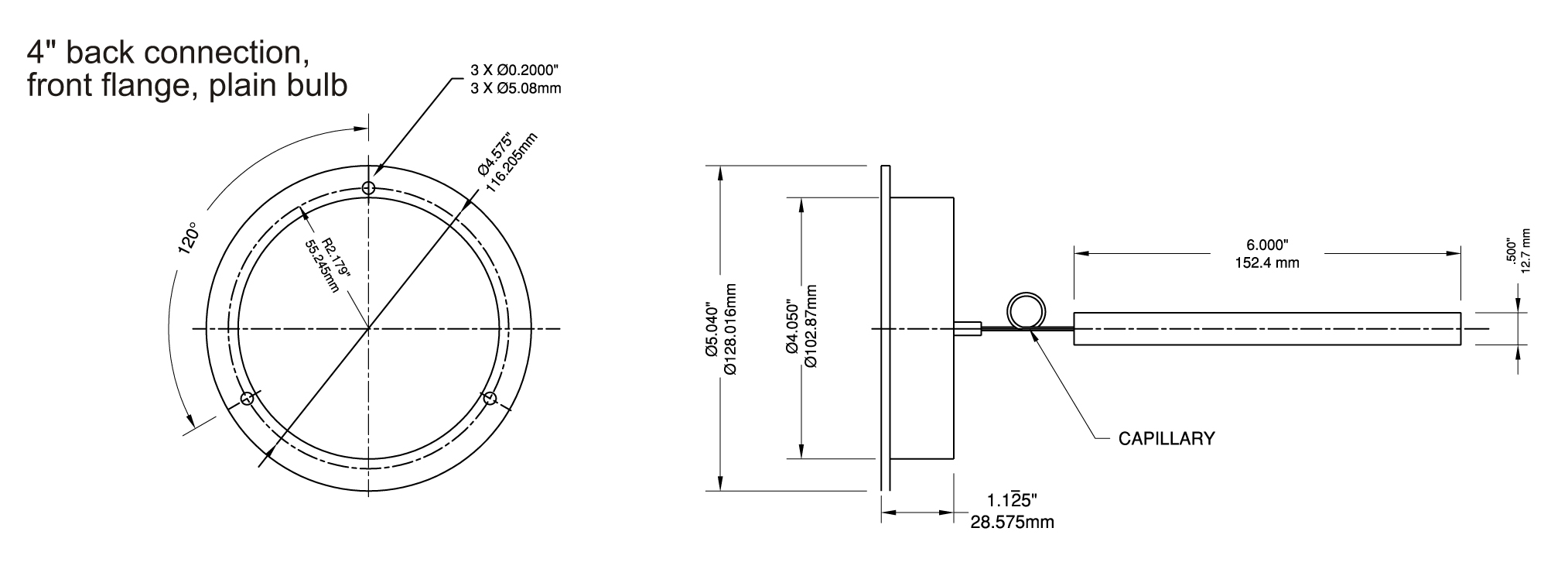

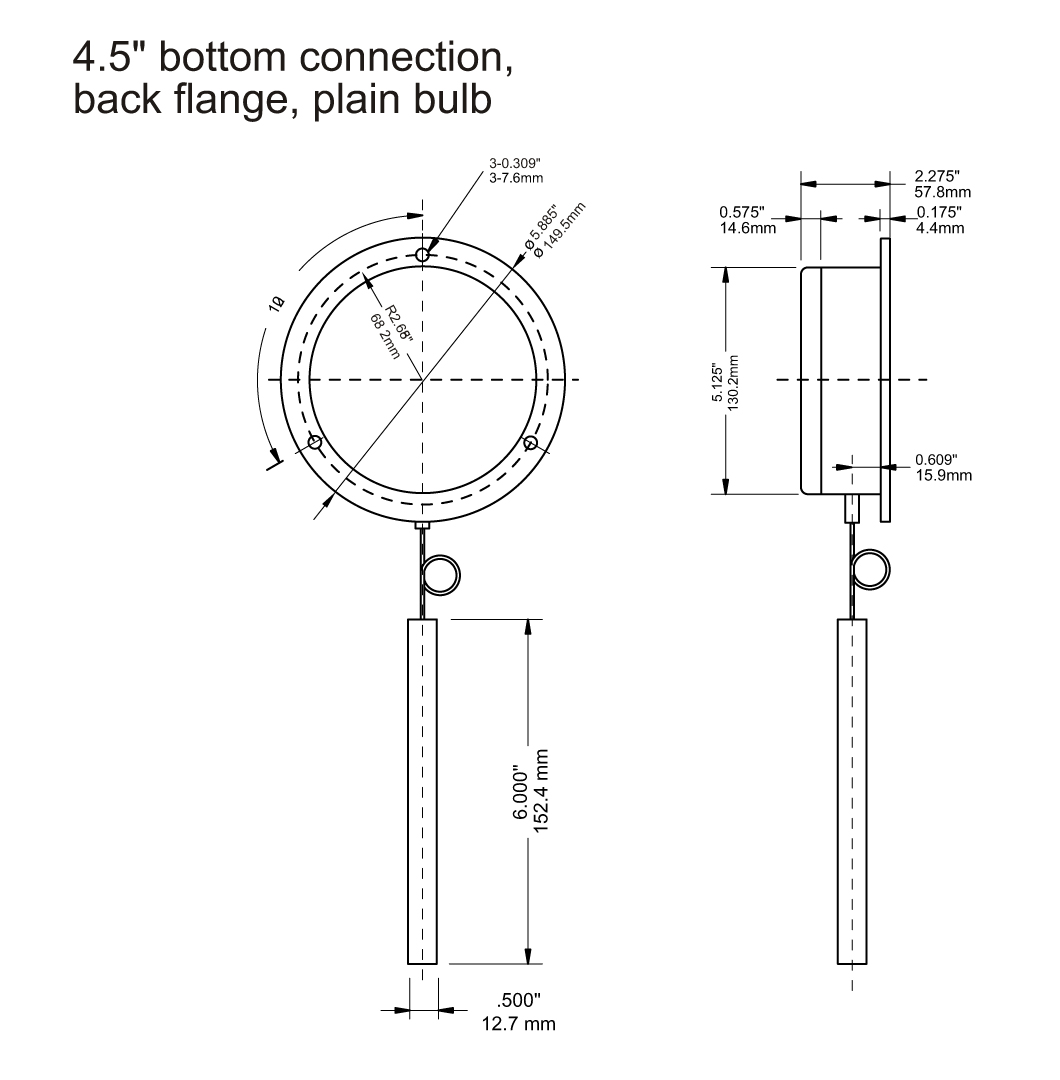

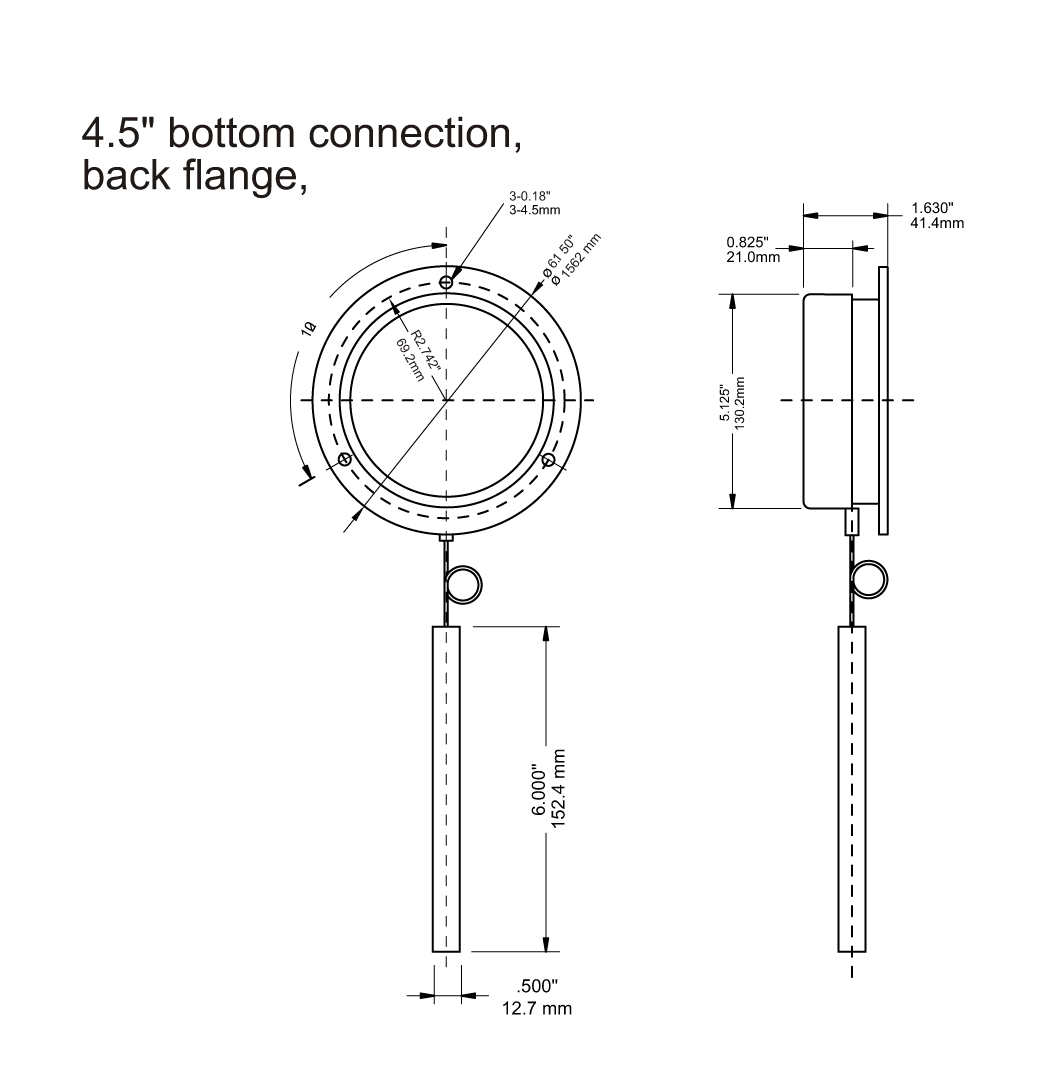

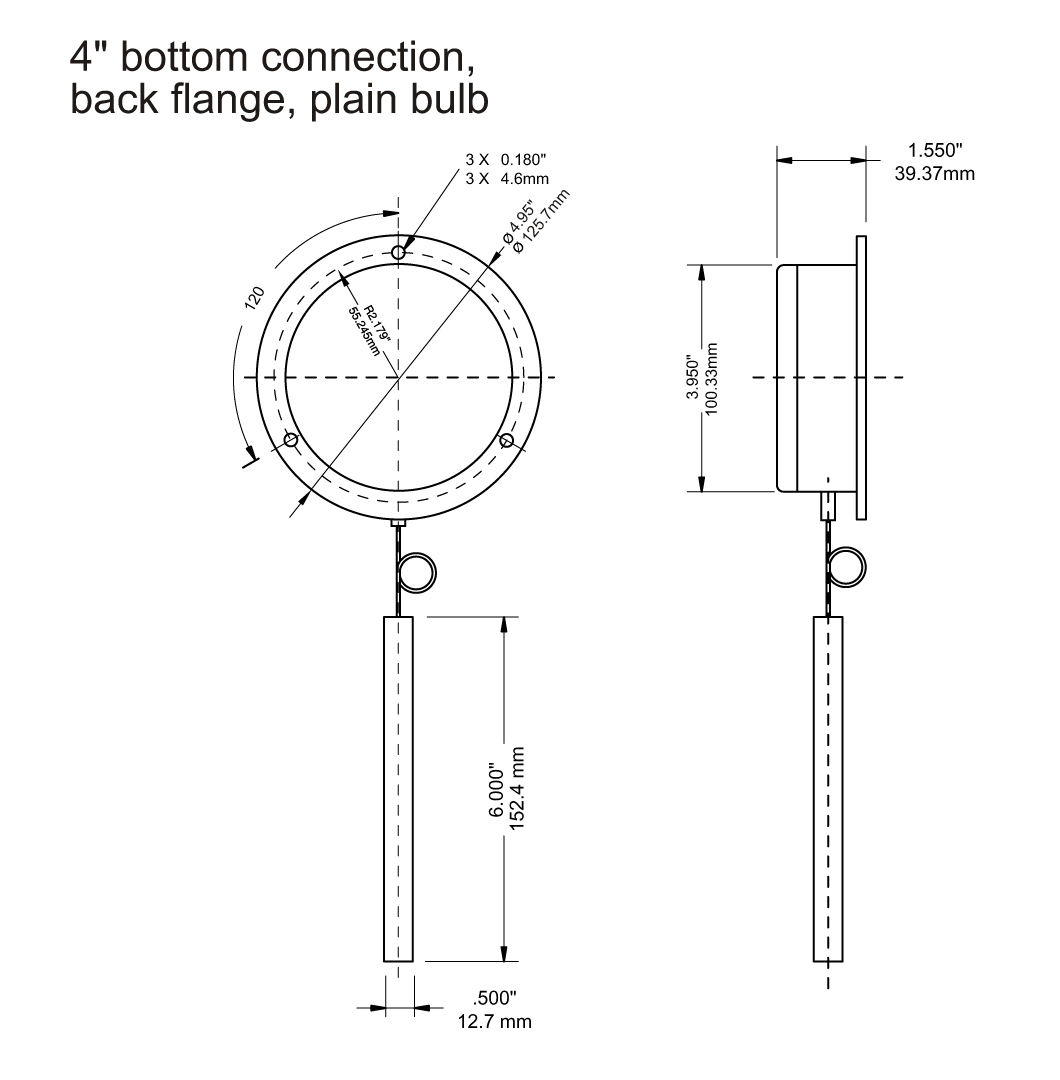

Dimensions - 304 SS Case
