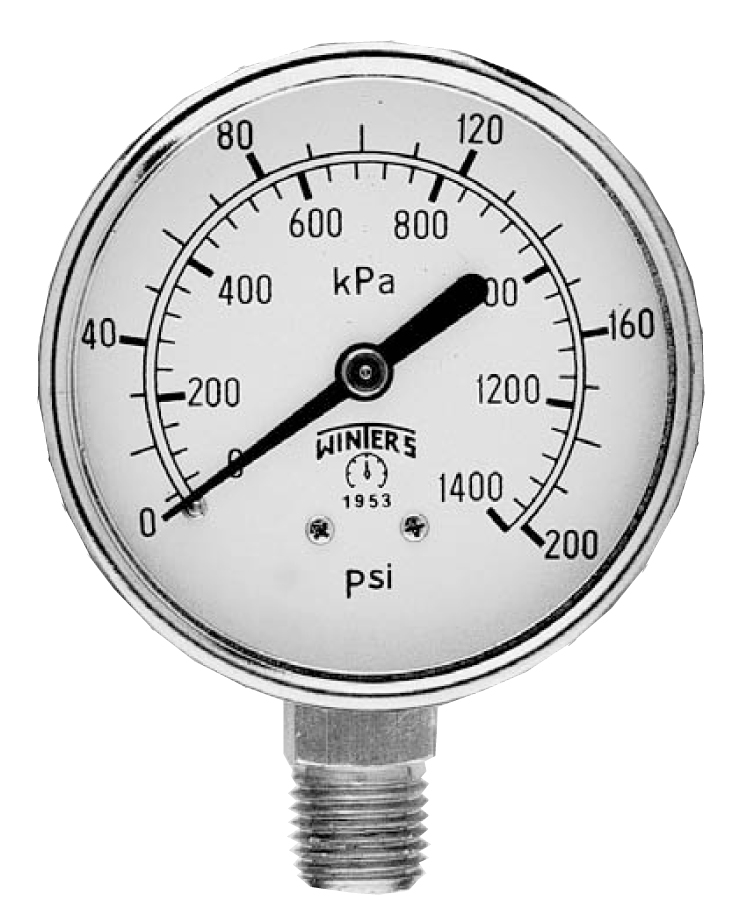

PEM Economy Gauge
Features
- Most economical all purpose pressure gauge
- 1.5" to 4" sizes
- Friction bezel rings
- Black steel case
- Brass internals
- Grade B Accuracy (3% -2% -3%)
- Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water tanks, Air Compressors, OEM part
Specification
| Dial | 1.5" (40mm), 2" (50mm), 2.5"(63mm), 4"(100mm), 6"(150mm), 8"(200mm) white aluminum |
| Case | Steel painted black |
| Lens | 1.5"(40mm), 2"(50mm), 2.5"(63mm): Polycarbonate, 4"(100mm): Glass |
| Ring | 1.5"(40mm), 2"(50mm): Steel, painted black; 2.5"(63mm), 4"(100mm): Steel, chorme plated |
| Pointer | Aluminum, painted black |
| Socket | Brass |
| Connection | 1/8", 1/4", 3/8", 1/2:in NPT, BSP, BSPT |
| Bourdon Tube | Phpsphor bronze |
| Movement | Brass |
| Protection | IP 52 |
| Over-pressure Limit | 25% of full scale value |
| Pressure Range | From vacuum to 0-5000psi (0-345bar) |
| Working Pressure | Maximun 75% of full scale value |
| Ambient Temperature | -40°F to 150°F (-40°C to 65°C) |
| Accuracy | ±3% -2% -3% -1.5",2",2.5" and 4" ±1.6% -6" and 8" |
| Welding | Silver alloy |
| Options | Glass Lens U-Clamp Other ranges and connections available |

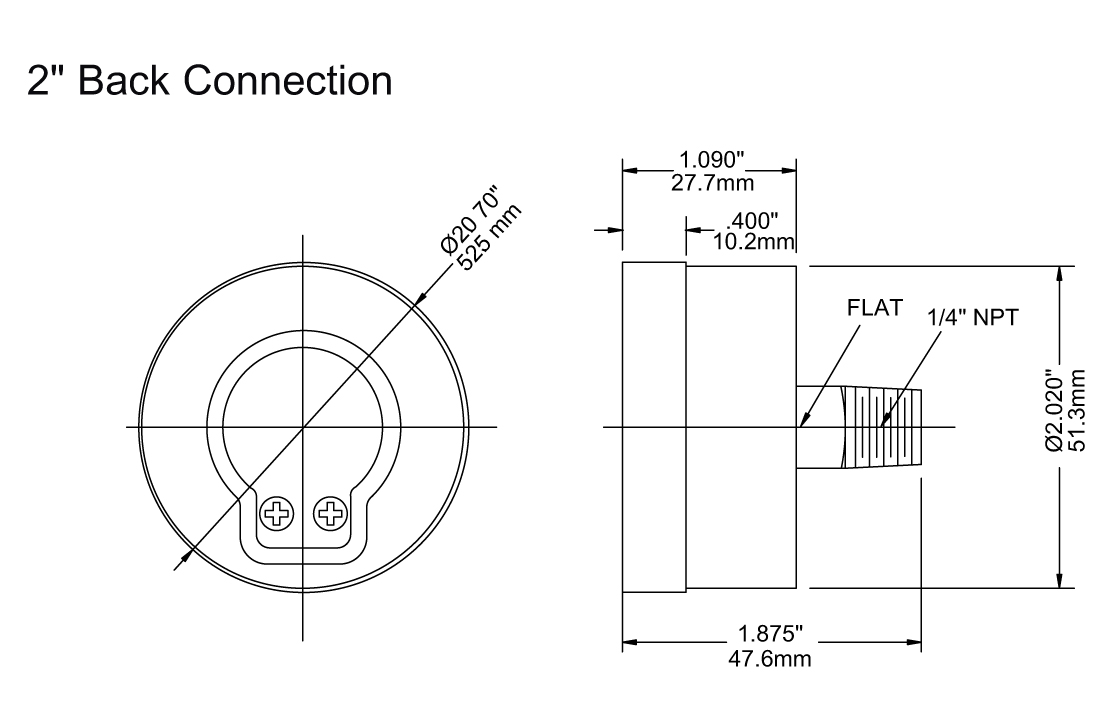

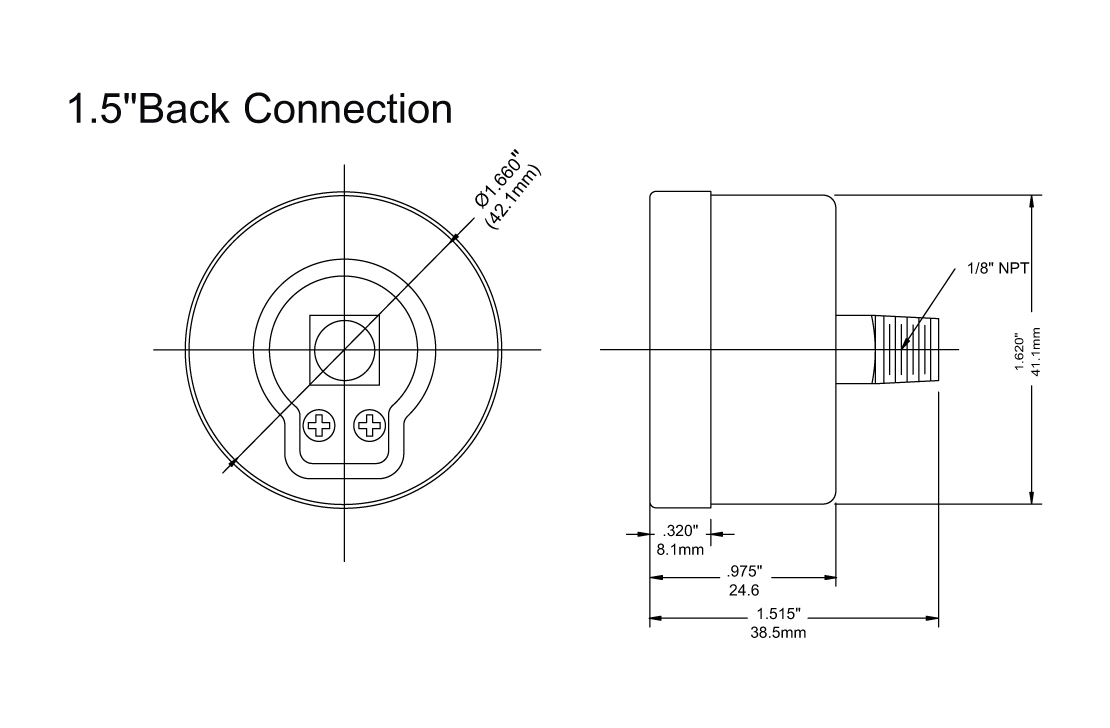

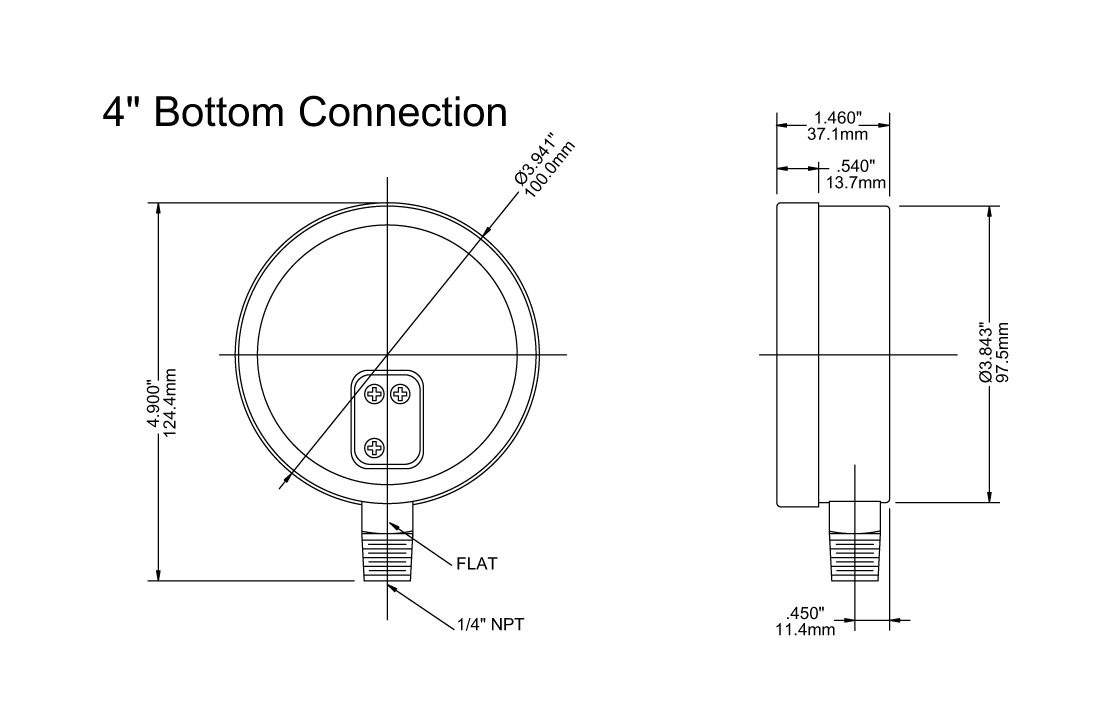

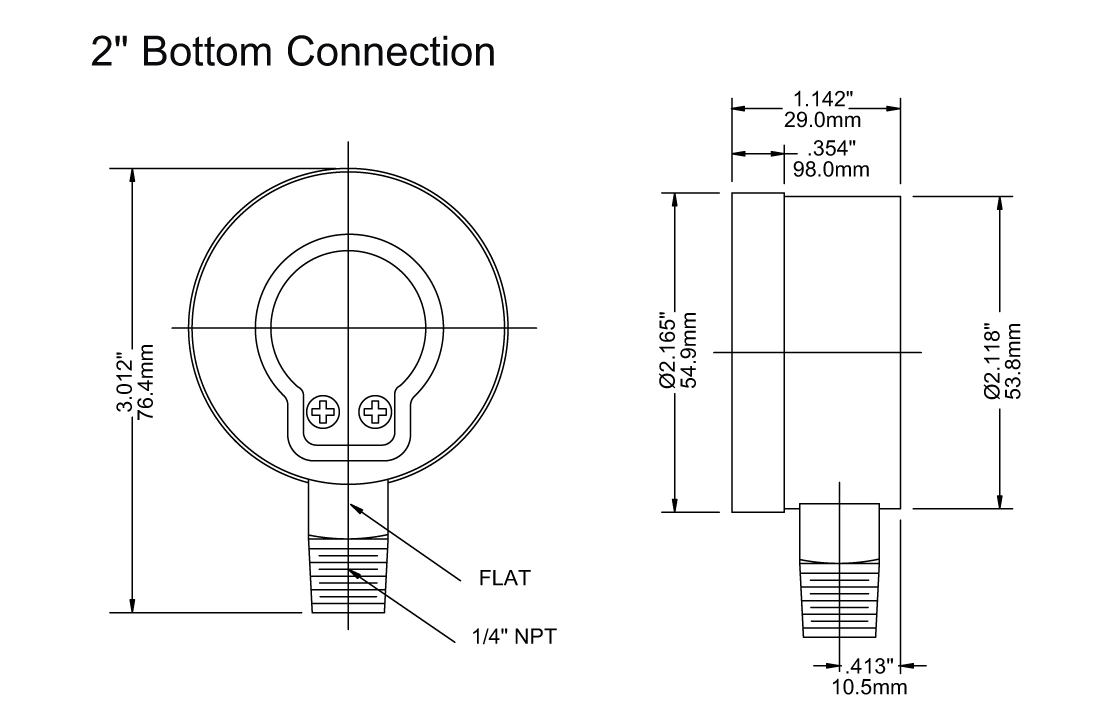

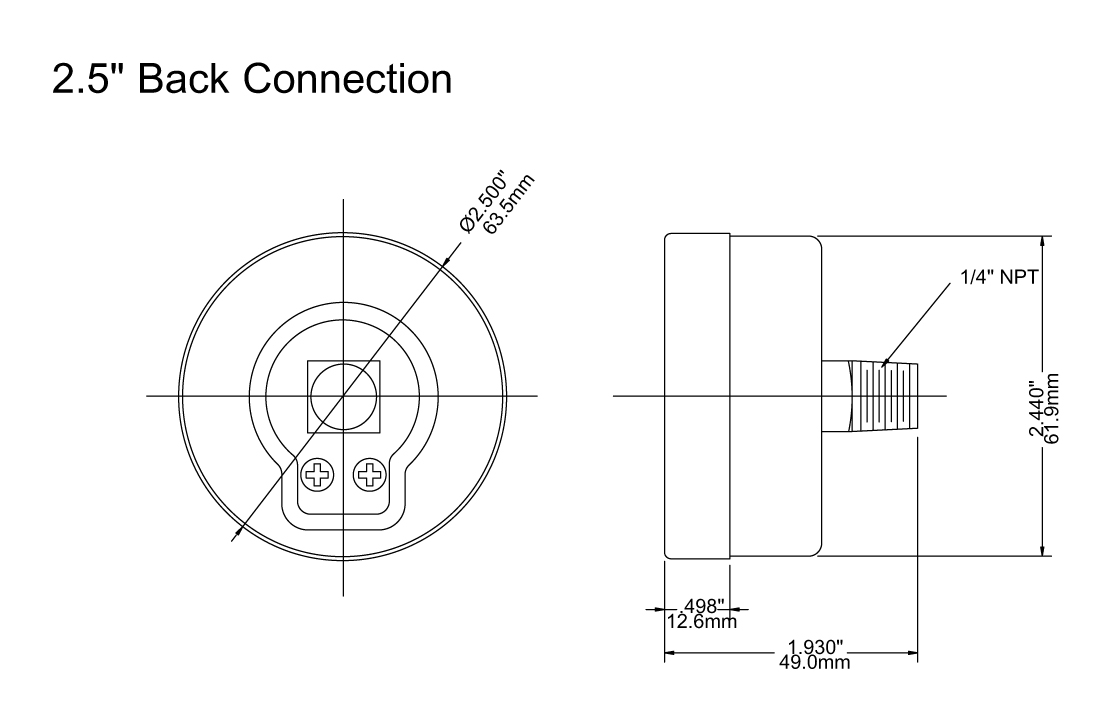

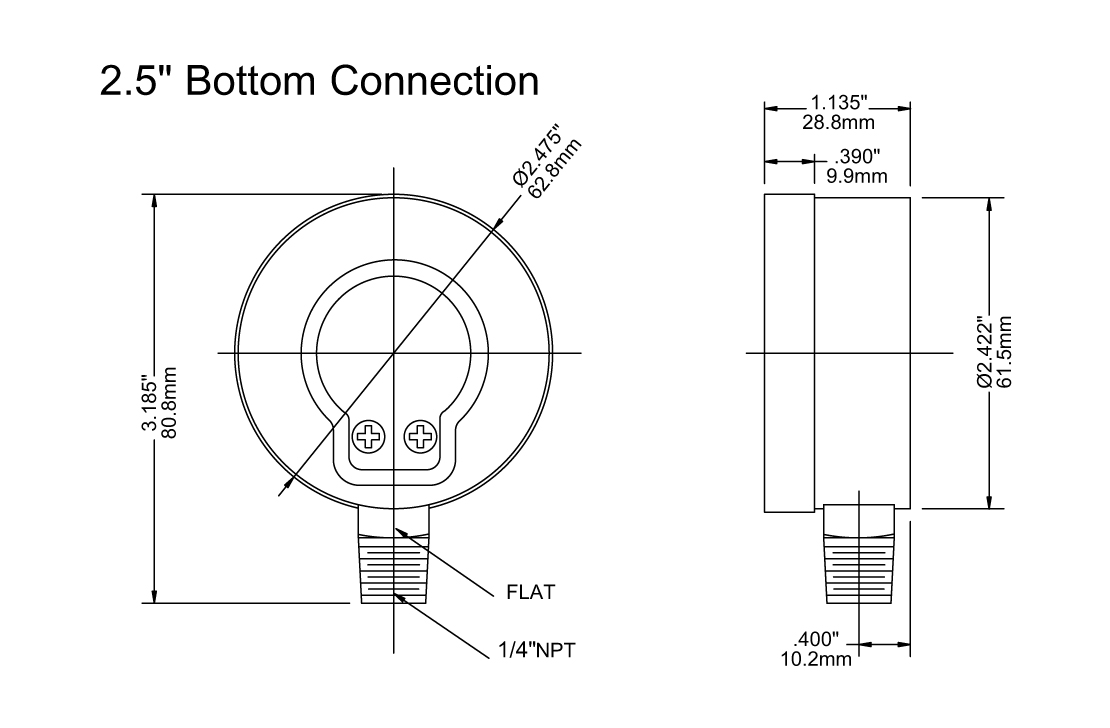

Dimensions
