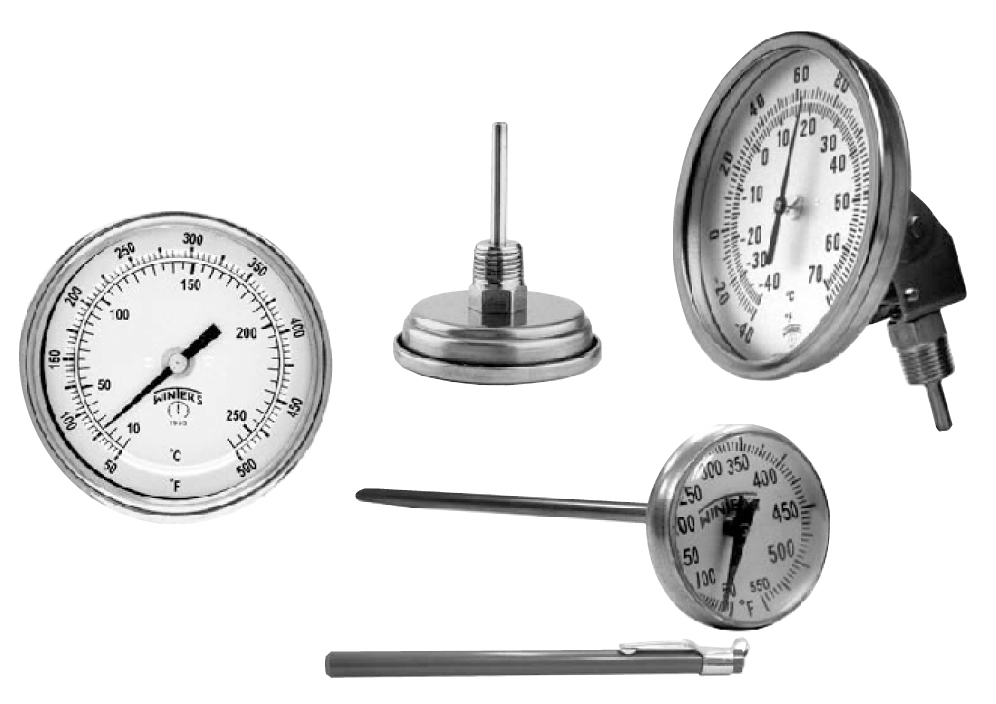

TBM Bi-Metal Thermometer
Features
- A general purpose, versatile 1" to 6" dial, 304 stainless steel thermometer
- Hermitically sealed case
- Bi-metalic sensing element for reliable readings
- Back, bottom or adjustable angle connection
- Stem length from 2.5" and up
- Grade 1A accuracy 1%
- Anti-parallax dial that reduces operator reading errors
- Re-zero adjustment screws are stanfard on the 2" to 6" dials
- Industrial process, food processing and wastewater
Specification
| Dial | 2"(50mm), 3"(75mm), 4"(100mm), 5"(125mm) and 6"(150mm) Aluminum with black markings, dished shaped |
| Case | 304 stainless steel |
| Lens | Glass Standard, hermetically sealed |
| Ring | 304 stainless steel |
| Accuracy | ±1.0% |
| Pointer | Aluminum, painted black |
| Movement | Bi-metalic coil |
| Stem | 304 stainless steel, centre back, bottom or adjustable angle configurations (note:2" dial only available with center back connection) |
| Connection | 1/4" NPT standard for 2"(50mm) dial 1/2" NPT standard for 3"(75mm), 4"(100mm), 5"(125mm) and 6" (150mm) dials |
| Welding | TIG |
| Recalibrator | Standard |
| Maximum Operating Pressure | 125psi (8.6bar) |
| Ambient Temperature | -58°F - 248°F (-50°C -120°C) |
| Operating Temperature | Recomended maximun 75 % of full scale value |
| Protection | IP65 |
| Options | Acrylic lens Glycerin Filling Sliding Union Shatterproof glass lens Aluminum Duct Flange Socket Conversion Kit 316 stainless steel stem Longer stem lengths are available Silicone fill is available 1/4" stem diameter standard; 6, 8, 10 and 12mm availabe Other ranges, connections and stem lengths are available upon request |
