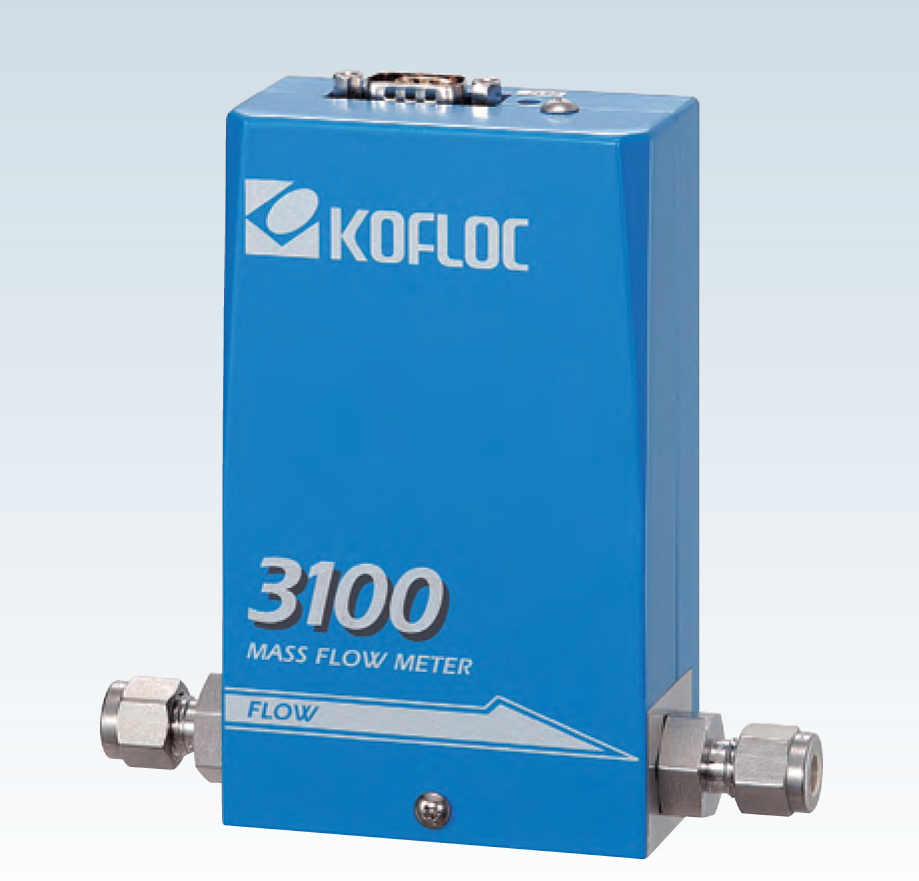

High-Grade Mass Flow Meter
Model 3100 SeiresThe Model 3100 Series Mass Flow Meter is a new, advanced high-precision flowmeter develope based on the Model 3200 Series. the incorporated innovative capilary type flow sensor reduces pressure loss and ensures high reponse as well as ensuring stability
Features
- Equipped with a temperature follow-up type current difference detection flow sensor to ensure high accuracy and quick response
- Measurement of minute flows available up to 1 SCCM full scale (SR option)

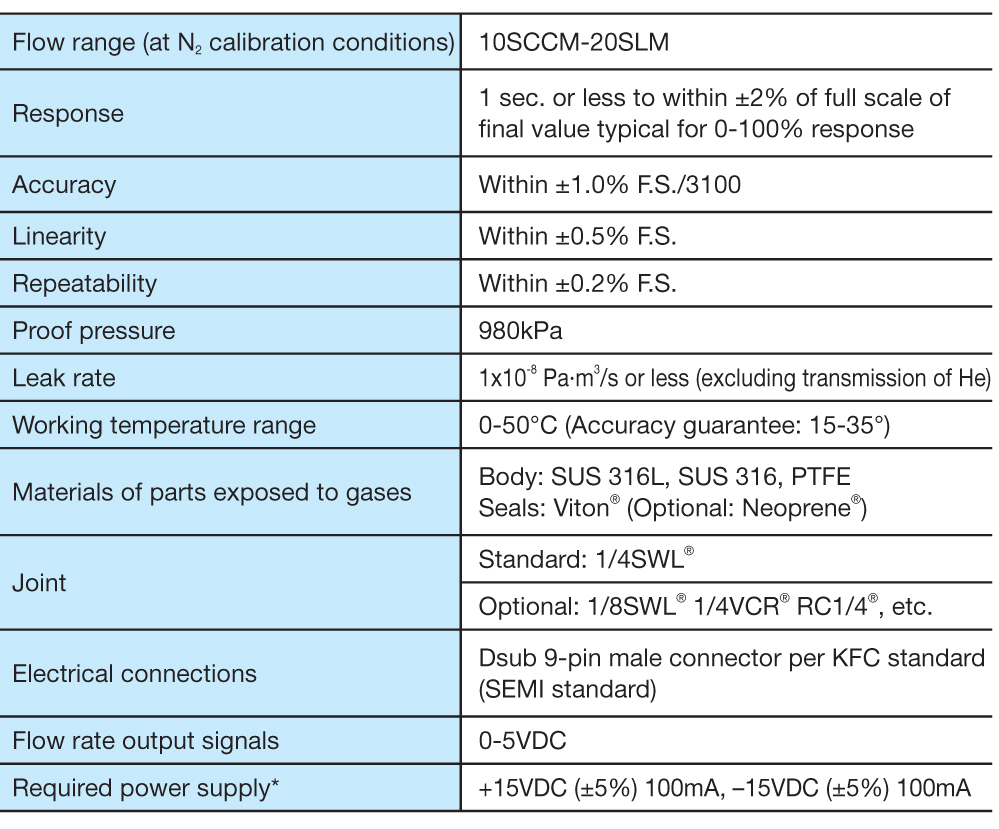

Standard Specifications
Hardness Layout
Pin Assignment of Dsub 9-pin Connector per KFC Standard| Pin no | Signal |
| 1 | NC |
| 2 | Flow output 0-5V |
| 3 | +15VDC Power source |
| 4 | Power source COM |
| 5 | -15 VDC Power source |
| 6 | NC |
| 7 | Flow output COM |
| 8 | NC |
| 9 | NC |

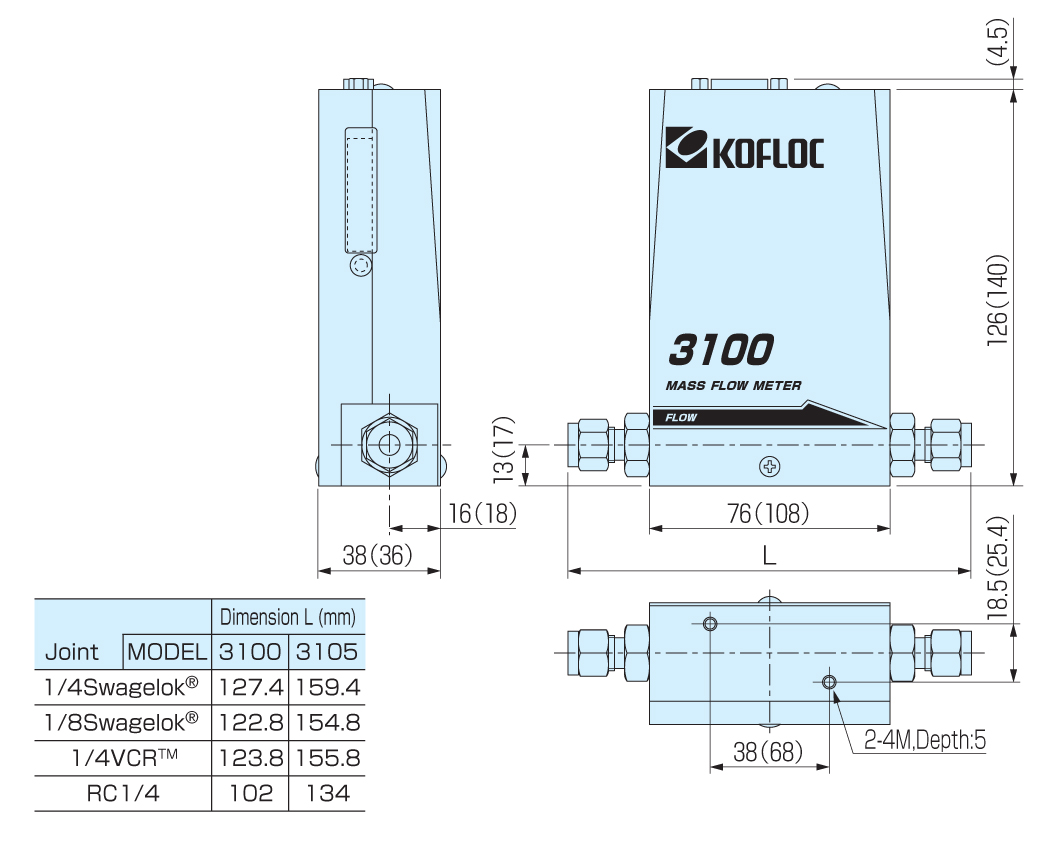

Dimension

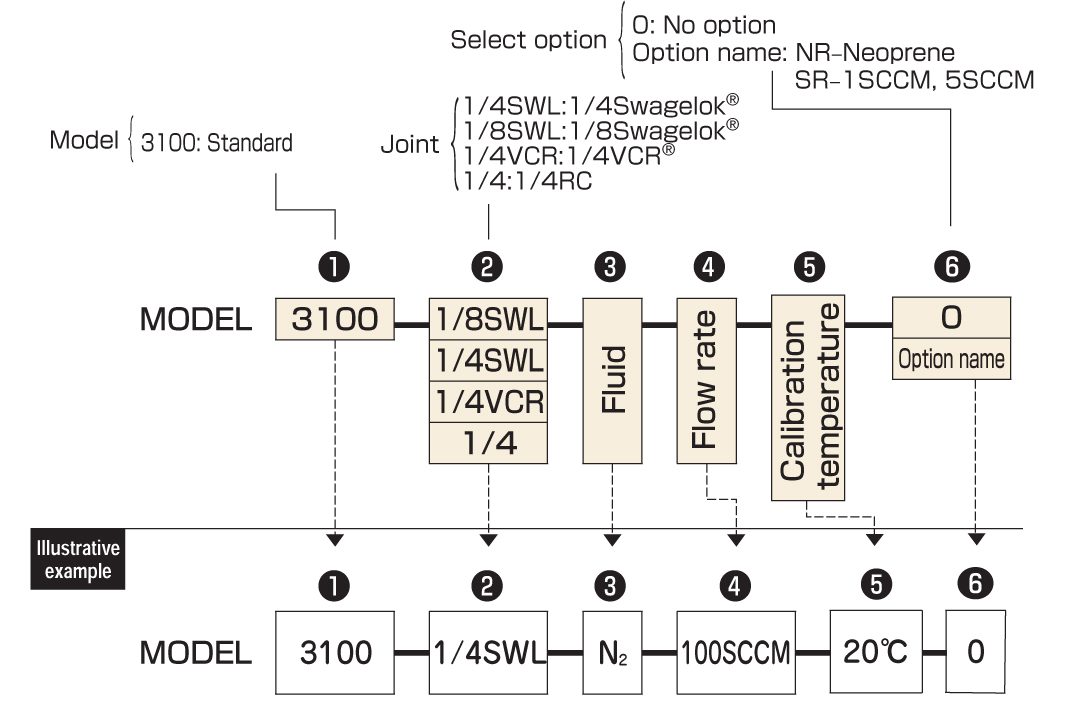

ORDERING
* Refer to "Ordering" and "Illustative example" when placing an order or requesting a quotation. Fill in the blanks in the "Order/Quotation Request Card" at the end of he catalog, and send the card by fax.
