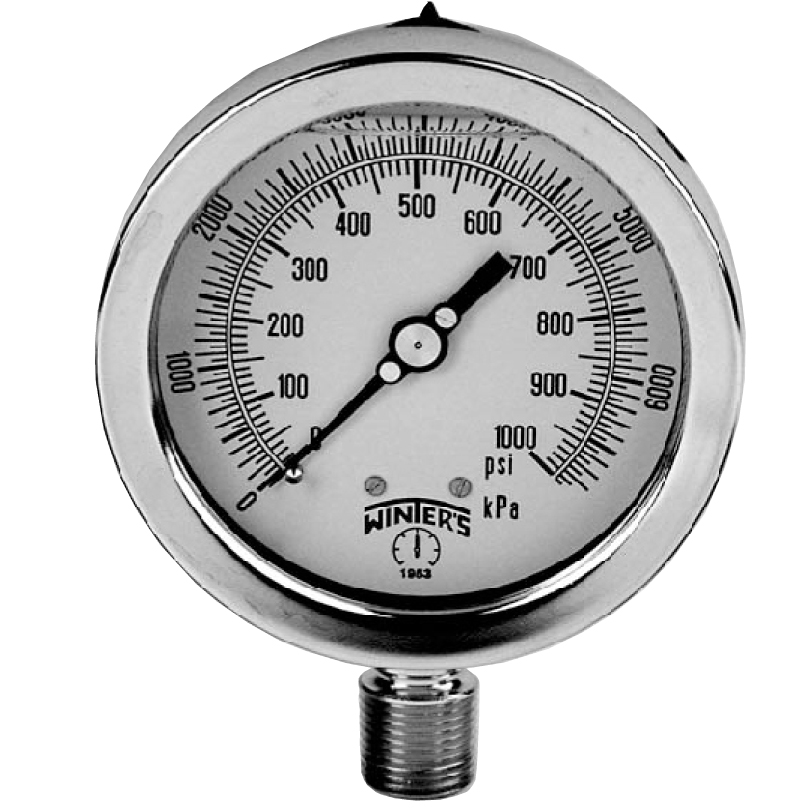

PFP Liquid Fillable Premium Gauge

Features
  • Stainless case protects against vibration and pulsation
  • Back, bottom , or panel mounted
  • Stainless Steel or Bass wetted parts
  • Restrictor Screw standard
Application
  • Outdoor and severe ambient and process conditions
  • Use where harmful vibration and pulsation are present
  • Hydraulic equipment, pressure washers, oil field equipment, pumps, Compressors and process systems

Specification

Dial  2.5"(63mm), 4"(100mm), 6"(150mm)
Case  304 Stainless steel
Lens  Polycarbonate
Ring  304 Stainless steel, baynet
Pointer  Alunimum black adjustable
Socket  316 stainless steel
Connection  1/4", 1/2", 3/8' in NPT, BSP, BSPT
Bourdon Tube  316 stainless steel
Movement Stainless steel
Protection  IP65
Over-pressure Limit  30% for pressure up to 600psi (42 bar)
15% for pressure over 600psi (42 bar)
Pressure Range From Vacuum to 0-60000psi (4000 bar)
Working Pressure  Maximun 75% of full scale value
Ambient Temperature  14°F to 150°F (-10°C - 65°C) glycerine filled
Accuracy ±1.5% - 2.5" (63mm)
±1.0% - 4"(100mm), 6"(150mm) and 10"(250mm)
Options  U-clamp
Front Flange
Back Flange
Blowout Disk
Safety Glass Lens
316 stainless steel case or ring
±0.5% accuracy for 6" (100mm) dial
Glycerine, Silicone, Halocarbon and Fluorolube fill Brass, Monel and other wetted part available
Other connection sizes available upon request

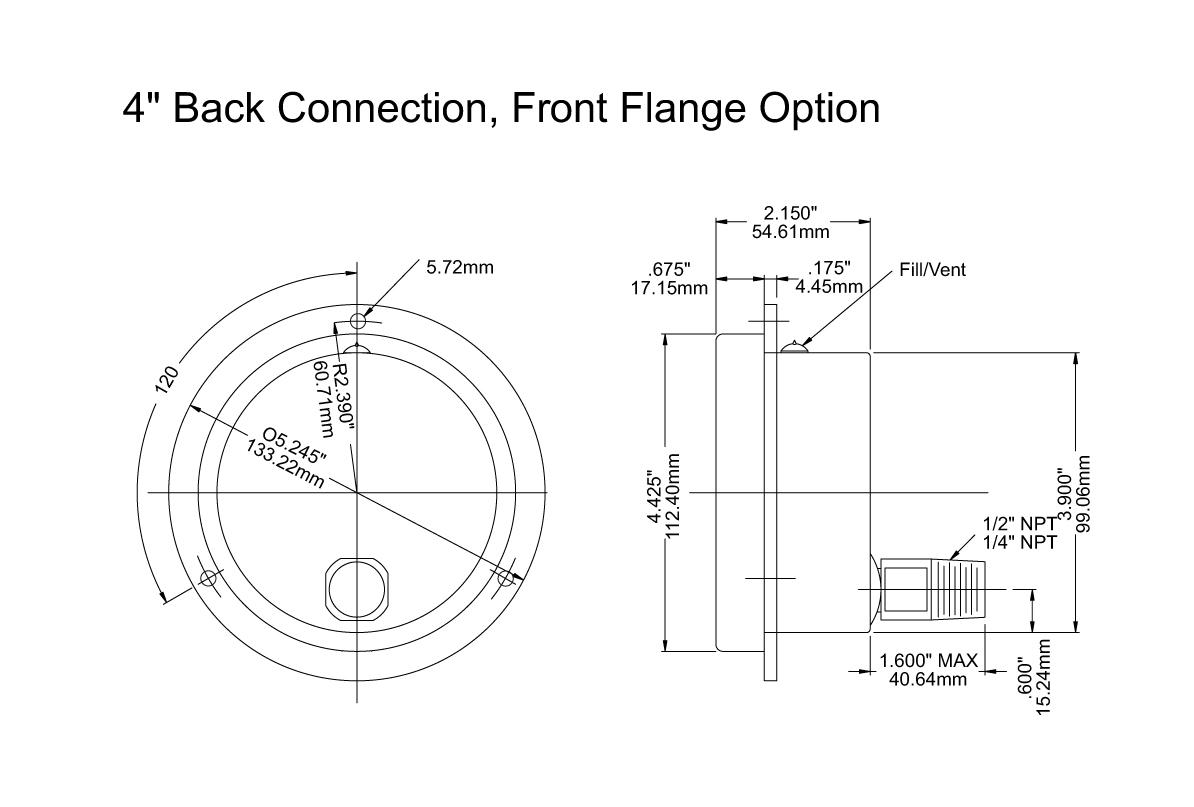

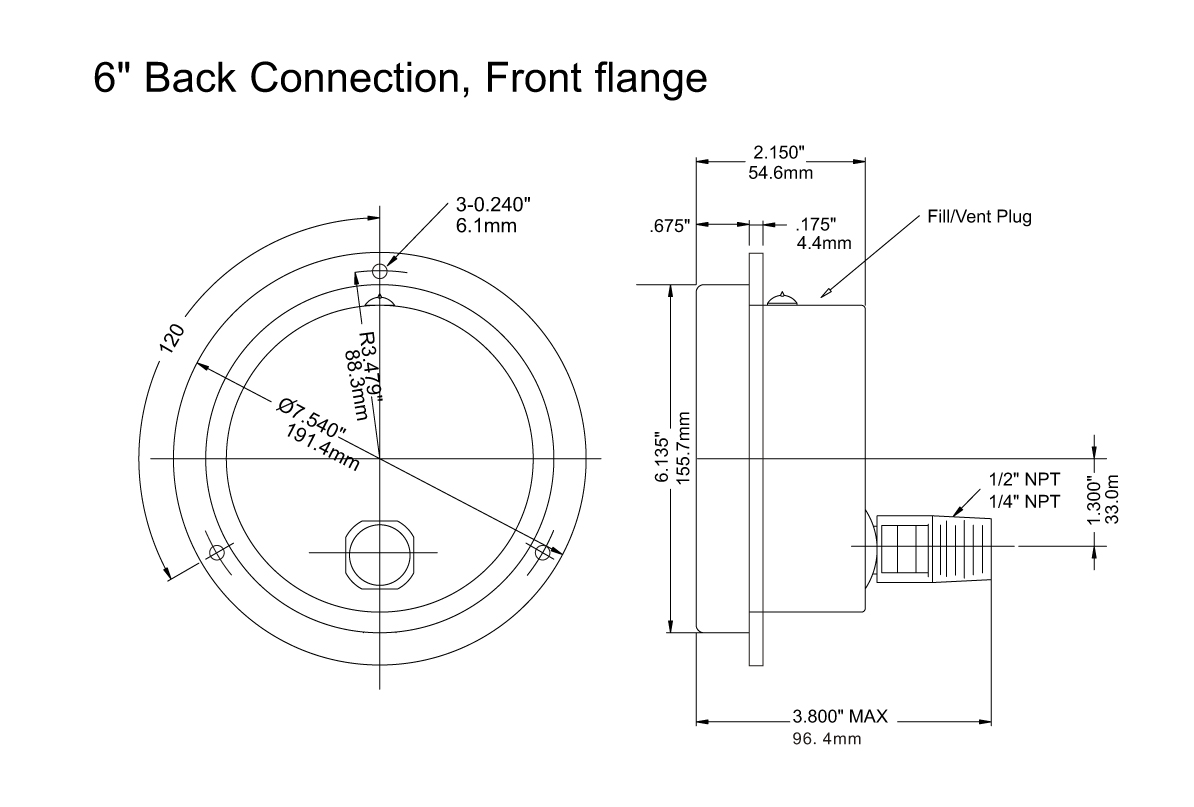

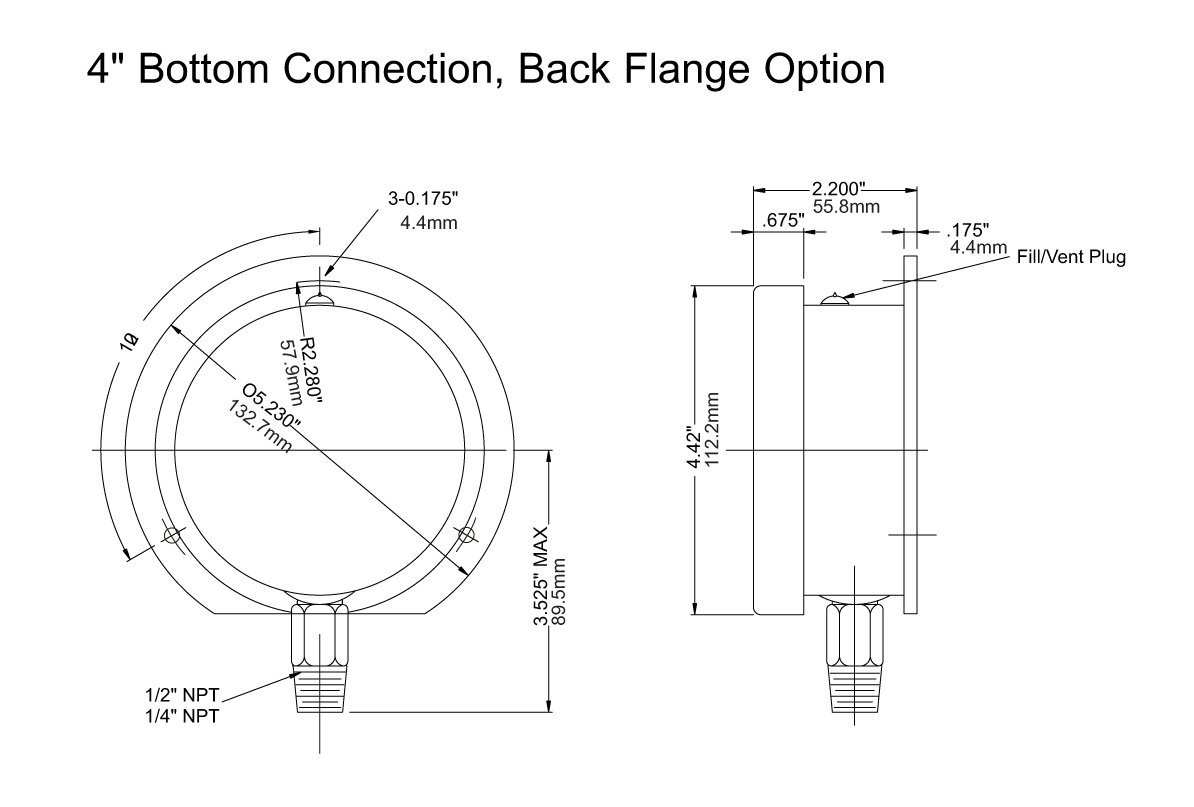

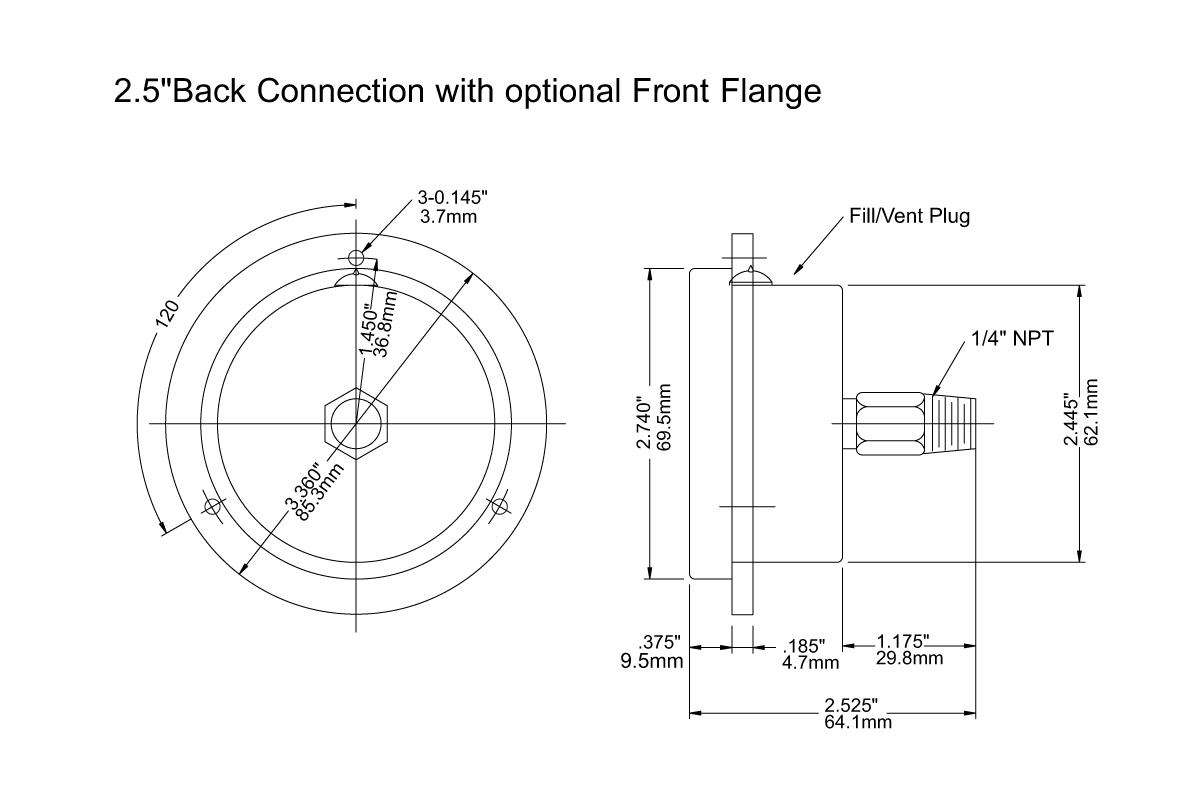

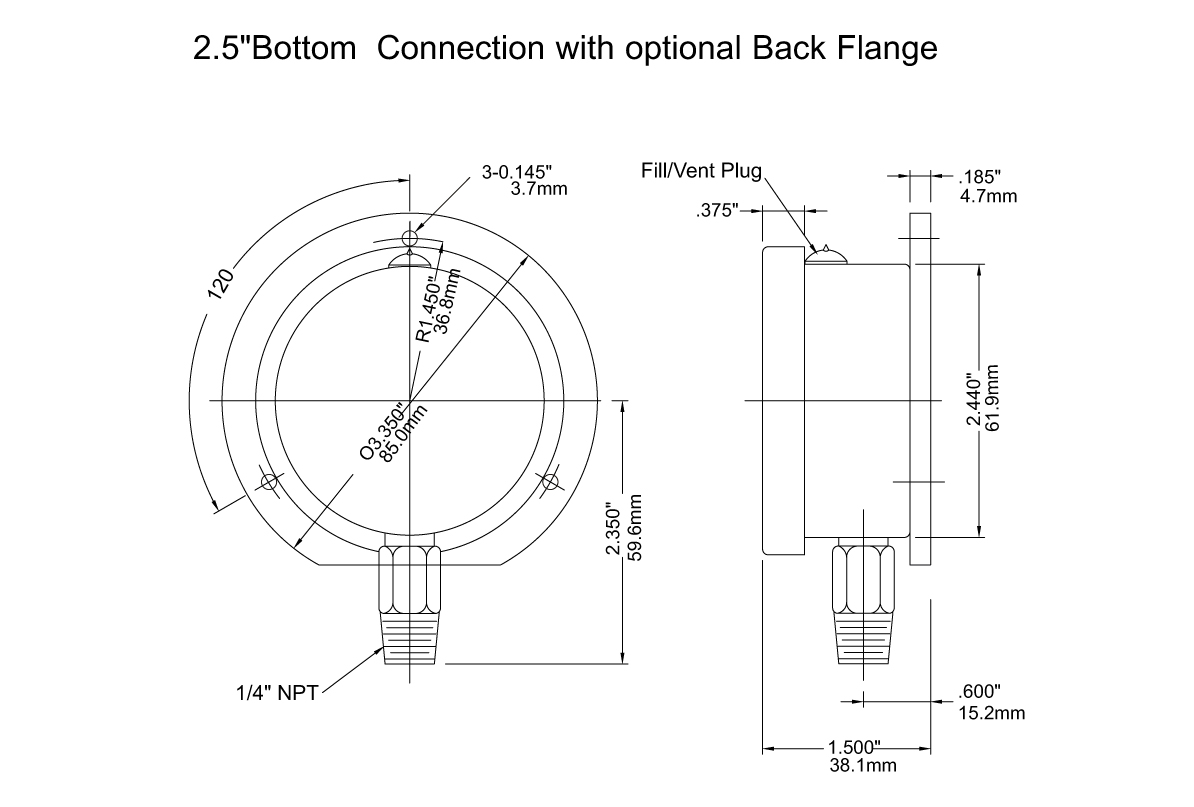

Dimensions

[ for more information please call or email us ]
