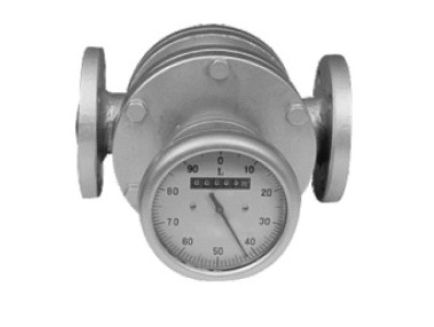

Oval Gear Positive Displacement Flowmeter

Oval Gear Positive Displacement Flowmeter

Overview
LC11 Serial Oval Gear FLowmeter is direct reading of totalizing meter. It is a volume type flowmeter that measures the total volume of the flow through the tube. It can be widely used in petroluem, chemical, medicinal industries, etc.

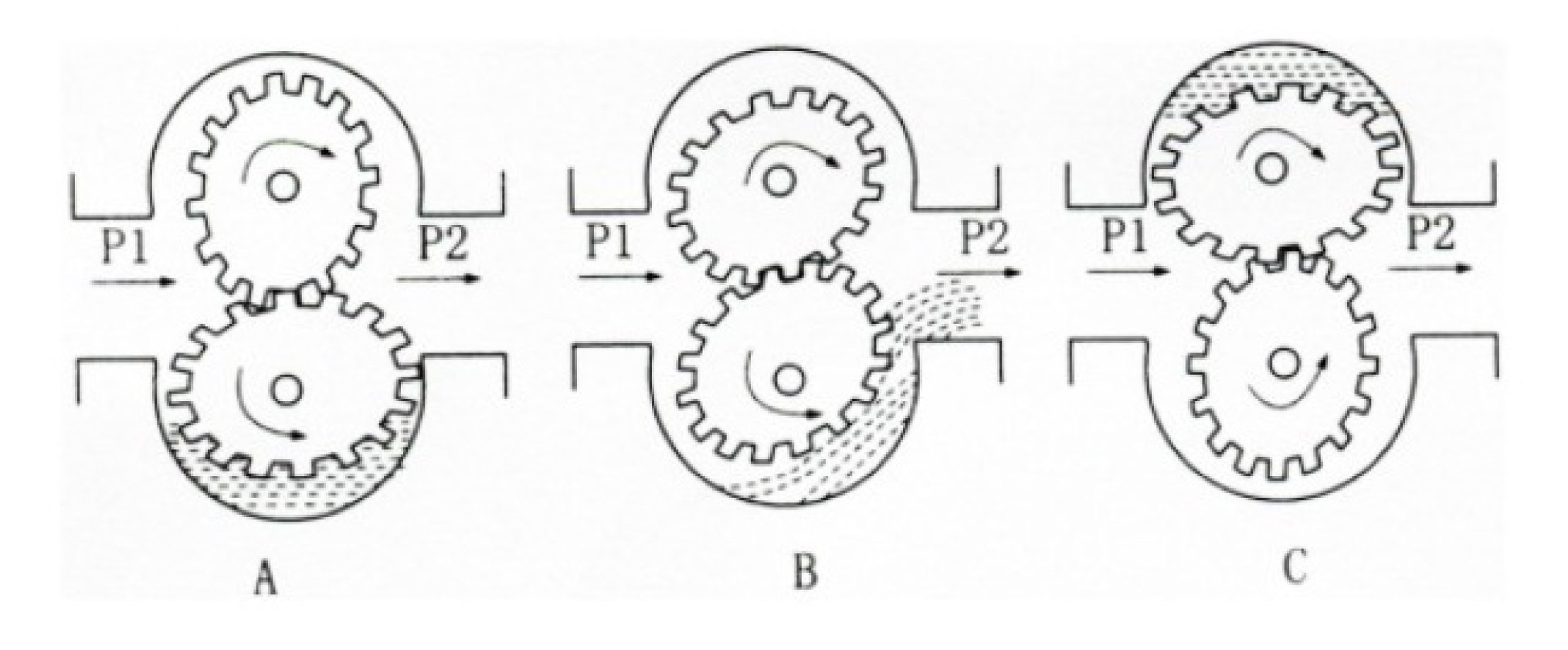

Structure and Operation Principle:
Under the hydraulic pressure difference of the entrance and the exit of the measuring chamber, a pair of oval gears are rotating and discharge the liquid. By counting the number of rotation of the total volume of the liquid flow through the meter.


Chracteristics
High accuracy, has little influence of the viscosity of the liquid. Do not need straight tube to be connected on the inlet and oulet of the meter

Technical Parameter

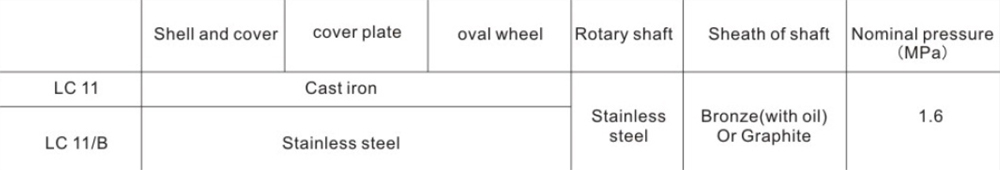

  • Materials of main parts and the nominal operating pressure
  • Accuracy :±0.5%
  • Measured media temp. (environment temperature -10°c ~ + 60°c
    Normal Temperature Type: -10 °c ~ +80°c
    High Temperature Type: 80°c ~ 200°c (with high temp. radiator installed)

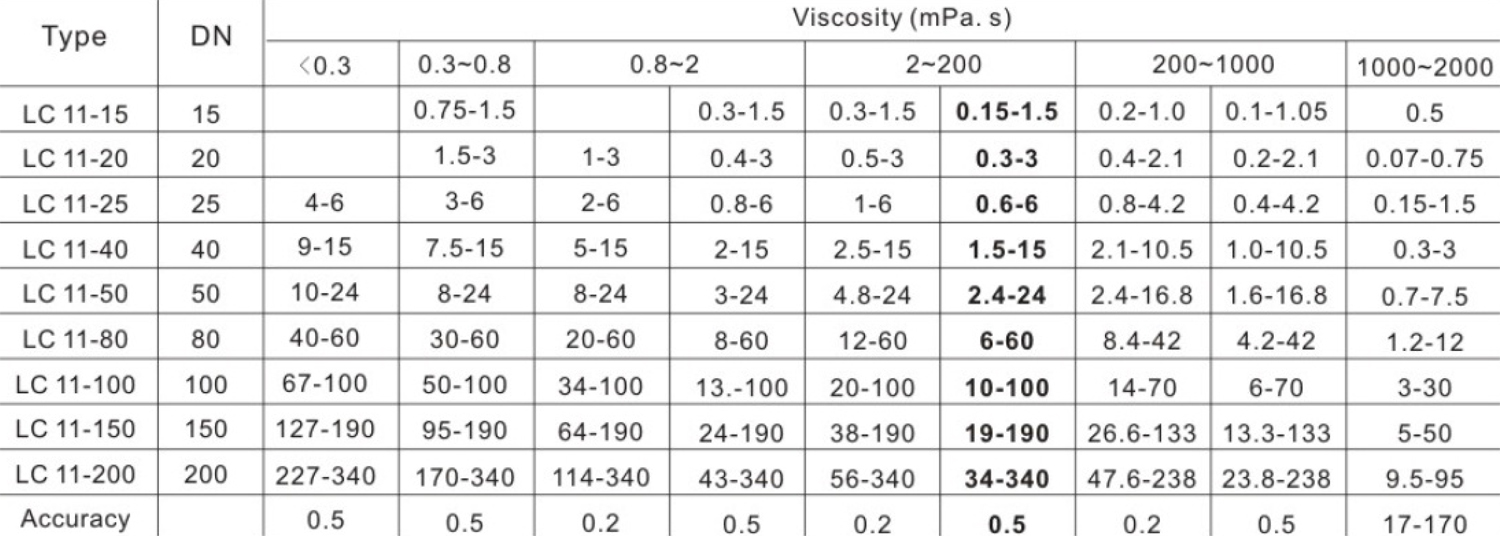

  • Flow Range:
    unit:m³/h

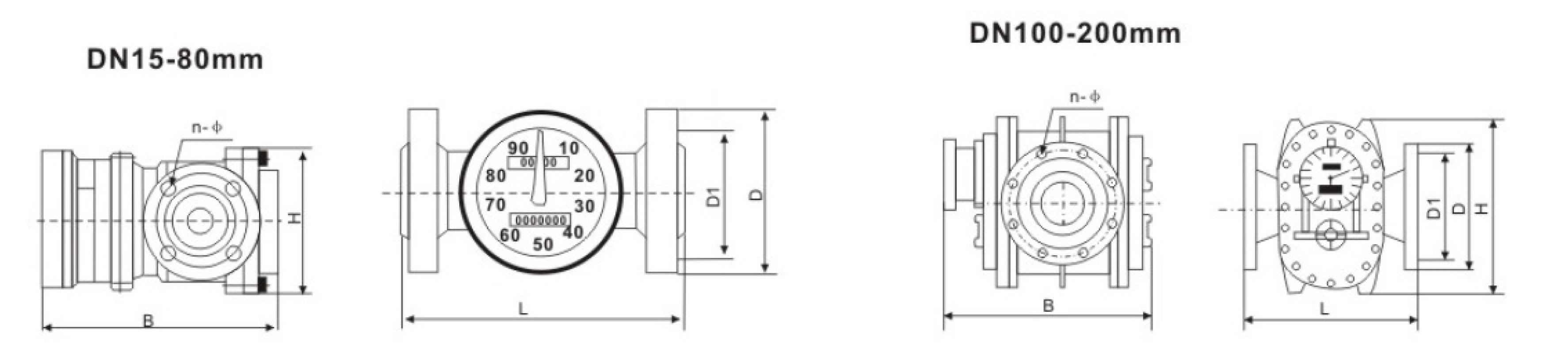

Shape and Installation Dimension:

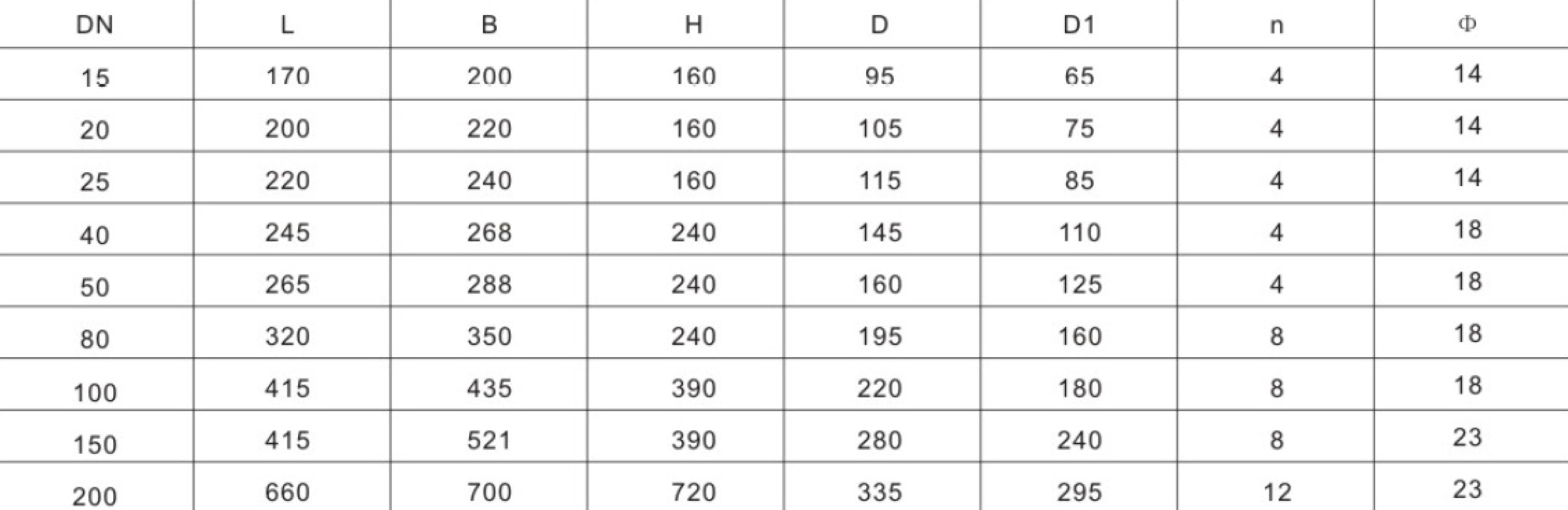

Dimensions

unit:mm
[ for more information please call or email us ]
